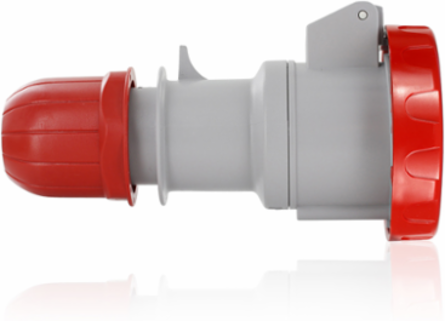

Leviton W232-C9 International Pin & Sleeve Connector, 32A, 380-415VAC, IP66/67, Red
- MPN: W232-C9
- UPC: 078477677582
- PPN: LEV-W232-C9
CAD
$199.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

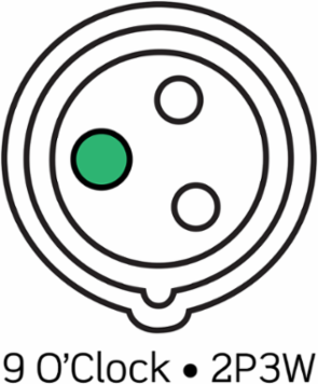

32 Amp, 380-415 Volt, 2P+E (2P, 3W), Clock Position 9, IEC/EN 60309-1 & 60309-2, International Configuration Connector, Industrial Grade, IP66/67, Wateright - RED
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Slovakia
RoHS CompliantTrue
Standards and Certifications
- CE
- Marked
- NOM Certified
- Yes
IEC Rating60309-1 and 60309-2
RETIE CertifiedYes
Material Specifications
- Contacts
- Nickel Plated Brass
HousingHalogen-free engineering polymer
Mechanical Specifications
- Cord Grip Range (in)
- .453 - .827
Terminal Accom.14-10 AWG
Product Features
- Color
- Red
- Device Type
- Connector
ConfigurationInternational
Environmental Specifications
- IK Rating
- IK08
- Operating Temperature
- -25°C to 40°C
IP RatingIP66/IP67
Electrical Specifications
- Amperage
- 32 A
- Pole
- 2
- Wire
- 3
Frequency50/60Hz
Voltage380-415 VAC
