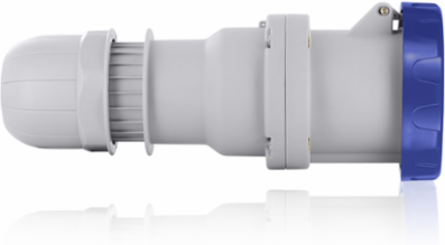

Leviton W3125-C9 International Pin & Sleeve Connector 125 Amp 200/250 Volt, IP66/67, Blue
- MPN: W3125-C9
- UPC: 078477677988
- PPN: LEV-W3125-C9
CAD
$652.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

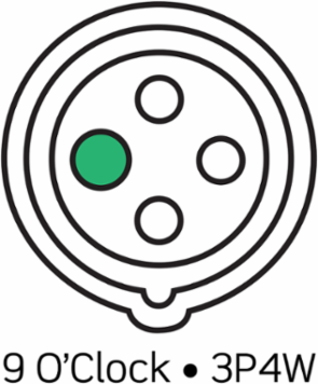

125 Amp, 200-250 Volt, 3P+E (3P, 4W), Clock Position 9, IEC/EN 60309-1 & 60309-2, International Configuration Connector, Industrial Grade, IP66/67, Watertight - BLUE
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Italy |
|---|
| RoHS Compliant | True |
|---|
Standards and Certifications
| CE | Marked |
|---|---|
| NOM Certified | Yes |
| IEC Rating | 60309-1 and 60309-2 |
|---|---|
| RETIE Certified | Yes |
Material Specifications
| Contacts | Nickel Plated Brass |
|---|
| Housing | Halogen-free engineering polymer |
|---|
Mechanical Specifications
| Cord Grip Range (in) | 1.024 - 1.90 |
|---|
| Terminal Accom. | #6 - #1 AWG |
|---|
Product Features
| Color | Blue |
|---|---|
| Device Type | Connector |
| Configuration | International |
|---|
Environmental Specifications
| IK Rating | IK08 |
|---|---|
| Operating Temperature | -25°C to 40°C |
| IP Rating | IP66/IP67 |
|---|
Electrical Specifications
| Amperage | 125 A |
|---|---|
| Pole | 3 |
| Wire | 4 |
| Frequency | 50/60Hz |
|---|---|
| Voltage | 200/250 VAC |
