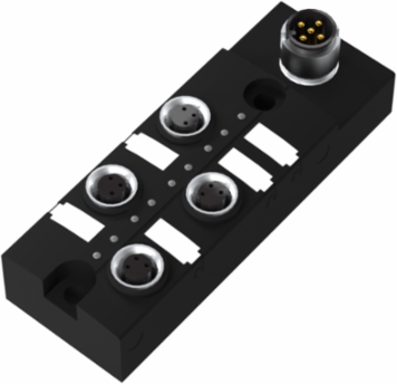

Balluff BNI IOL-101-000-K018 IO-Link sensor/actuator hubs BNI IOL-101-000-K018
- MPN: BNI IOL-101-000-K018
- PPN: BAL-BNI000P
CAD
$252.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Our I/O modules with their robust housings are suitable for use in a harsh industrial environment. The I/O hubs are based on M12 or M8 plug connections and are easy and economical to install and maintain.
Documentation & Downloads
Specifications
Key Specifications
| Interface | IO-Link 1.0 |
|---|---|
| Connection (COM 1) | M12x1-Male, 4-pin, A-coded |
| Digital inputs | 4x PNP, Type 2 |
| Housing material | PBT, GF |
| Ambient temperature | -5-55 °C |
| Transfer rate | COM2 (38.4 kBaud) |
| Process data IN | 1 byte Input |
| Operating voltage Ub | 18-30.2 VDC |
|---|---|
| Connection ports | 4x M8x1-Female, 3-pin |
| Configurable inputs/outputs | no |
| Dimension | 30 x 24 x 85.5 mm |
| IP rating | IP67 when threaded in |
| Process data cycle min. | 2.5 ms |
