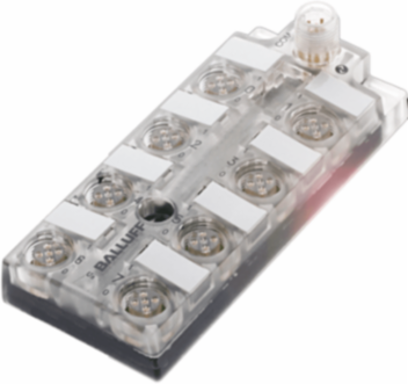

Balluff BNI IOL-302-000-K006 IO-Link sensor/actuator hubs BNI IOL-302-000-K006
- MPN: BNI IOL-302-000-K006
- PPN: BAL-BNI005L
CAD
$261.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Our I/O modules with their robust housings are suitable for use in a harsh industrial environment. The I/O hubs are based on M12 or M8 plug connections and are easy and economical to install and maintain.
Documentation & Downloads
Specifications
Key Specifications
- Interface
- IO-Link 1.1
- Connection (COM 1)
- M12x1-Male, 4-pin, A-coded
- Digital inputs
- 16x PNP, Type 3
- Configurable inputs/outputs
- yes
- Housing material
- PA, Transparent
- Ambient temperature
- -5-55 °C
- Transfer rate
- COM2 (38.4 kBaud)
- Process data IN
- 2 bytes
Operating voltage Ub18-30.2 VDC
Connection ports8x M12x1-Female, 5-pin, A-coded
Digital outputs16x PNP
Output current max.350 mA
Dimension50 x 30.8 x 115 mm
IP ratingIP67 when threaded in
Process data cycle min.3.5 ms
Process data OUT2 bytes
