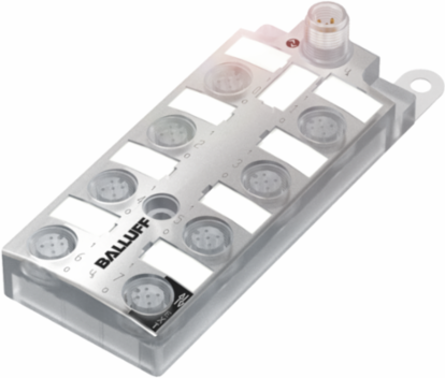

Balluff BNI IOL-302-002-K006 IO-Link Sensor/Actuator Hub, 16x PNP Outputs, IP67, 50 x 30.8 x 115 mm
Balluff BNI IOL-302-002-K006 IO-Link Sensor/Actuator Hub, 16x PNP Outputs, IP67, 50 x 30.8 x 115 mm
- MPN: BNI IOL-302-002-K006
- PPN: BAL-BNI007Z
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$263.51/ EA
Description
Engineered for robust performance in demanding environments, the IO-Link sensor/actuator hub from Balluff offers exceptional reliability and versatility. With an IP67 rating when properly threaded in, this hub is designed to withstand harsh conditions while providing seamless connectivity through its 16 PNP digital outputs and configurable inputs/outputs. Operating within a voltage range of 18 to 30.2 VDC, it supports a quick process data cycle of just 3.5 ms, ensuring efficient data transfer and control in automation applications. The compact dimensions of 50 x 30.8 x 115 mm and durable PA housing make it an ideal choice for various industrial settings, while its extended features, including an extension port and compatibility with IO-Link 1.1, enhance its functionality and integration capabilities.
Specifications
- Operating Voltage
- 18...30.2 VDC
- Current Sum Sensor
- 4 A
- Process Data Cycle Time
- 3.5 ms
- Connection COM1
- M12x1-Male, 4-pin, A-coded
- Digital Outputs
- 16x PNP
- Housing Material
- PA, Transparent
- Configurable Inputs/Outputs
- Yes
- Ambient Temperature Range
- -20...55 °C
- Interface
- IO-Link 1.1 compatible
Switching Current16x 350 mA
Current Sum Actuator4 A
Dimension50 x 30.8 x 115 mm
Connection Slots8x M12x1-Female, 5-pin, A-coded
Digital Inputs16x PNP, Type 3
Extension PortYes
IP RatingIP67, when threaded in
Data Transfer RateCOM2 (38.4 kBaud)
Country of OriginChina
