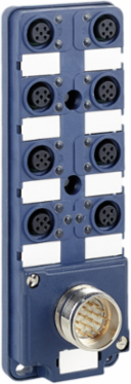

Telemecanique Sensors ABE9C1280C23 IP67 Passive Splitter Box 8 Channels M12 Connector, 24V DC
- MPN: ABE9C1280C23
- PPN: SCH-ABE9C1280C23
CAD
$171.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The IP67 Passive Splitter Box by Schneider Electric is designed for reliable performance in industrial automation environments. Featuring eight channels with M12 connectors, this splitter box facilitates efficient data and power distribution while ensuring robust protection against dust and moisture. Engineered for use with a 24V DC power supply, it enhances connectivity options for PLC, HMI, and data acquisition systems, making it an essential component for streamlined operations in various applications. Its durable construction and thoughtful design reflect Schneider Electric's commitment to quality and innovation in automation control solutions.
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | Advantys ABE9 |
|---|---|
| Number Of Channels | 8 |
| Product Or Component Type | IP67 passive splitter box |
| Status Led | without |
|---|---|
| Electrical Connection | 1 male connector M23 19 pins || 8 female connectors M12 5 pins |
Complementary
| Separation Of Commons | without |
|---|---|
| Current Per Channel | 4 A |
| Number Of Ways | 16 ways |
| Fixing Mode | M4 screw fixing |
| Net Weight | 0.14 kg |
| Current Of Common | 16 A 1-1 mm² || 12 A 0.75-0.75 mm² |
|---|---|
| Insulation Group | category 3 VDE 0110 |
| [Ue] Rated Operational Voltage | 24 V DC |
| Operating Position | any position |
| Contact Resistance | 5000 µOhm |
Environment
| Product Certifications | cULus |
|---|---|
| Ambient Air Temperature For Storage | -40-85 °C |
| Vibration Resistance | 0.2 gn 57-150 Hz)IEC 68-2-6, FC tests |
| Ambient Air Temperature For Operation | -20-80 °C |
|---|---|
| Shock Resistance | 30 gn 11 ms EN 68-2-2 |
| Ip Degree Of Protection | IP67 IEC 529 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| China Rohs Regulation | X |
|---|---|
| Mercury Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Rohs Exemption Information | Yes |
|---|---|
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
