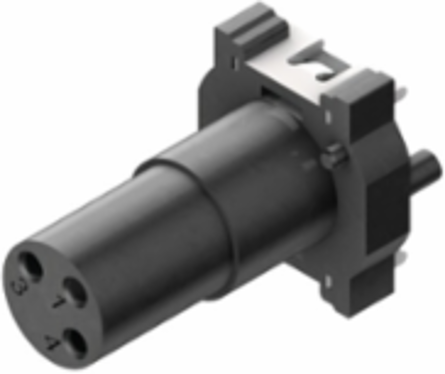

Weidmuller 2423880000 SAID-M8B-4-THR
- MPN: 2423880000
- PPN: WDM-2423880000
CAD
$4.84
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

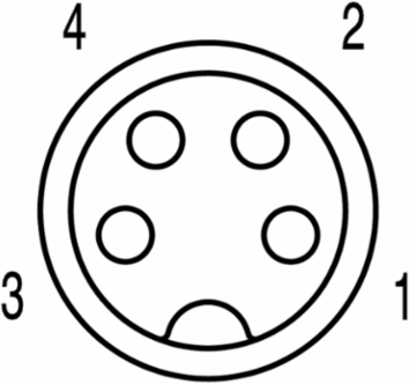

Built-in plugs, M8, Socket connector, M 12, Number of poles: 4
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 2.48 g |
|---|
Technical Data Of Pcb Plug-In Connector
| Coding | M8 = none |
|---|---|
| Number of poles | 4 |
| Rated voltage | 30 V |
| Rated current | 4 A (3-, 4- and 5-pole) / 1.5 A (8-pole) |
| Protection degree | IP67 |
| Housing main material | LCP |
| Tightening torque | M8: 0.5 Nm |
| Pollution severity | 3 (2 within the sealed area) |
| Contact material | CuZn |
| Material of the flange-mounted housing | Nickel-plated CuZn |
| Housings | M8 socket |
|---|---|
| Shield connection | No |
| Rated voltage (text) | 60 V (3-pole) / 30 V (4-,5- and 8-pole) |
| Temperature range | -25…95 °C |
| Contact surface | Au (Gold) |
| Connection thread | M8 |
| Insulation strength | 100 MΩ |
| Plugging cycles | ≥ 100 |
| Lock nut material | Nickel-plated CuZn |
Material Data
| Contact material | CuZn |
|---|
| Contact surface | Au (Gold) |
|---|
Classifications
| ETIM 6.0 | EC000438 |
|---|---|
| eClass 9.1 | 27-44-02-05 |
| ETIM 7.0 | EC000438 |
|---|---|
| eClass 10.0 | 27-44-02-23 |
System Parameters
| Insulation strength | 100 MΩ |
|---|---|
| Pin series quantity | 1 |
| Protection degree | IP67 |
| Number of poles | 4 |
|---|---|
| Plugging cycles | ≥ 100 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
