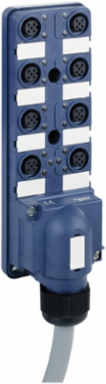

Telemecanique Sensors ABE9C1280L10 IP67 Passive Splitter Box, 10 m Cable, 8 Channels M12 Connector
- MPN: ABE9C1280L10
- PPN: SCH-ABE9C1280L10
CAD
$254.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This passive splitter box from Schneider Electric is designed to enhance your connectivity options while ensuring robust performance in challenging environments. With an IP67 rating, it provides excellent protection against dust and water, making it ideal for industrial applications where durability is essential. Featuring a convenient 10-meter cable and eight channels with M12 connectors, this splitter box enables reliable communication across multiple devices, streamlining your setup and maintaining efficient operations. Whether you're in manufacturing, automation, or other demanding fields, this product stands out for its dependable design and versatility.
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | Advantys ABE9 |
|---|---|
| Number Of Channels | 8 |
| Product Or Component Type | IP67 passive splitter box |
| Status Led | without |
|---|---|
| Electrical Connection | 1 pre-wired cable connector, 10 m || 8 female connectors M12 5 pins |
Complementary
| Separation Of Commons | without or with |
|---|---|
| Current Per Channel | 4 A |
| Number Of Ways | 16 ways |
| Fixing Mode | M4 screw fixing |
| Net Weight | 3.06 kg |
| Current Of Common | 16 A 1-1 mm² || 12 A 0.75-0.75 mm² |
|---|---|
| Insulation Group | category 3 VDE 0110 |
| [Ue] Rated Operational Voltage | 24 V DC |
| Operating Position | any position |
| Contact Resistance | 5000 µOhm |
Environment
| Product Certifications | cULus |
|---|---|
| Ambient Air Temperature For Storage | -40-85 °C |
| Vibration Resistance | 0.2 gn 57-150 Hz)IEC 68-2-6, FC tests |
| Ambient Air Temperature For Operation | -20-80 °C |
|---|---|
| Shock Resistance | 30 gn 11 ms EN 68-2-2 |
| Ip Degree Of Protection | IP67 IEC 529 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| China Rohs Regulation | X |
|---|---|
| Mercury Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Rohs Exemption Information | Yes |
|---|---|
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
