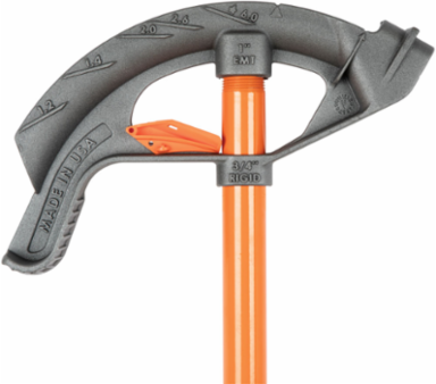

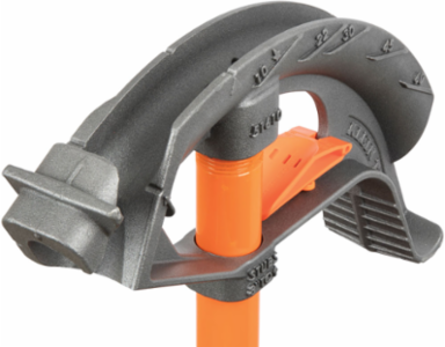

Klein Tools 51605 Iron Conduit Bender 1-Inch EMT with Angle Setter™, Durable Iron, 11.6 lbs
- MPN: 51605
- UPC: 092644516054
- PPN: KLT-51605
- UNSPSC: 27112503
CAD
$161.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

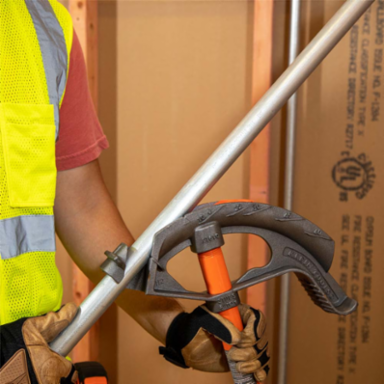

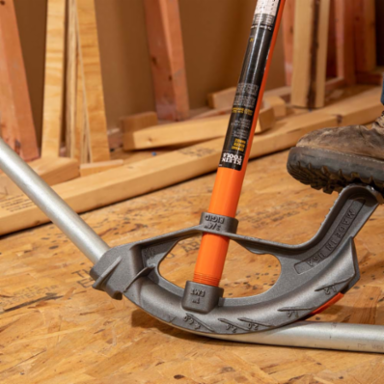

Klein Tools' conduit benders with Patent Pending Angle Setter™ technology allow for quick, accurate repeated bends. The wide foot pedal provides excellent stability and features angled grooves for extra traction. With easily visible bold cast-in benchmark symbols, degree scales and multiplier scales help save time on the job.
Features

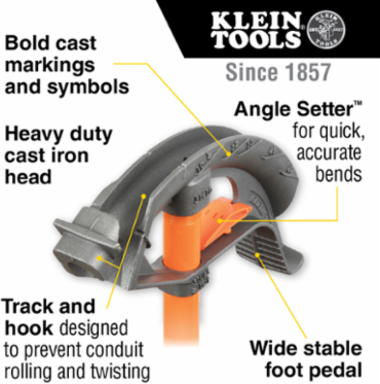

- 1-Inch assembled Iron Bender includes Klein's unique Angle Setter™ technology for time-saving, repeated accurate bends; Patent pending Angle Setter™ for use on 10-, 22.5-, 30-, and 45-Degree bends (adjusted for conduit spring back)
- Heavy duty cast ductile iron has the durability needed on the job site

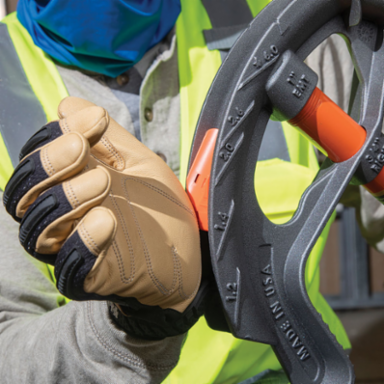

- Bold cast markings and symbols make for fast, easy conduit alignment to make all bend types, including saddle and back-to-back bends

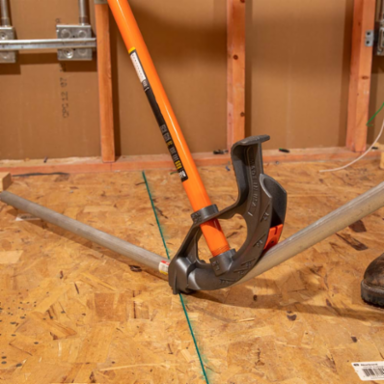

- Wide foot pedal provides excellent stability, leverage, and comfort
- Interior hook surface prevents conduit from rolling or twisting during bends
- Includes markings for 10-Degrees, 22.5-Degrees, 30-Degrees, 45-Degrees, 60-Degrees and corresponding offset multipliers

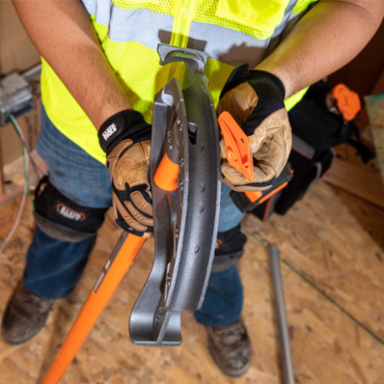

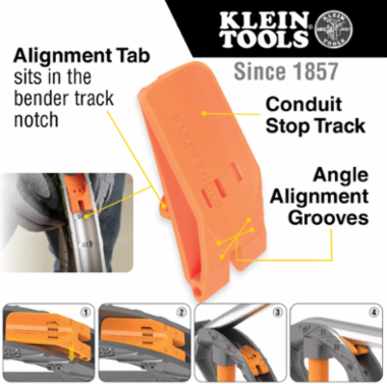

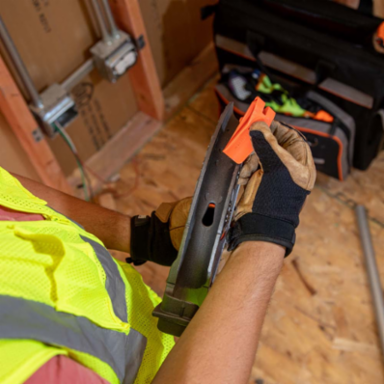

- Features Klein's 1-Inch Angle Setter™ (Cat. No. 51613) that creates a hard stop for quick, accurate, and consistent bends
- Designed to bend 1-Inch EMT, 3/4-Inch Rigid and 3/4-Inch IMC conduit
- Patent Pending Angle Setter™ Technology
Documentation & Downloads
Specifications
Key Specifications
- Application
- Bending Conduit
- Material
- Iron
- Rigid/IMC
- 3/4" (1.9 cm)
- Conduit Type
- EMT
- Thinwall/EMT
- 1" (2.5 cm)
- Overall Width (Inch)
- 12.9
- Overall Length (cm)
- 6.4
- Overall Height (cm)
- 132.3
- Centerline Bend Radius (Inch)
- 7.375
- Weight (lb)
- 11.8
- Overall Length (Inch)
- 2.5
- Width
- 2.3130 in
- Weight
- 11.6000 lbs
TypeIron Conduit Bender
Conduit Size1"
Marking10°, 22°, 30°, 45°, 60°
Included51610 Bender Head; 51428 Handle; 51613 Angle Setter™
Overall Width (cm)32.8
Stub-Up Height (Inch)8
Weight (kg)5.4
Handle Length (cm)111.8
Overall Height (Inch)52.1
Handle Length (Inch)44
Height12.6250 in
Depth45.3750 in
