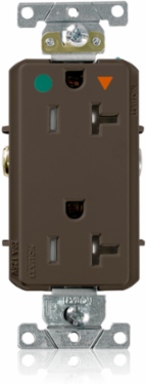

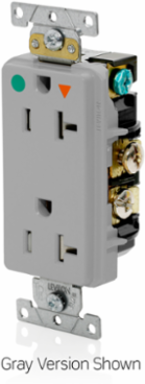

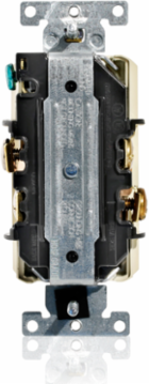

Leviton DT830-IGB Decora Plus 20 Amp Isolated Ground Duplex Receptacle, Hospital Grade, Tamper-Resistant
- MPN: DT830-IGB
- UPC: 078477895740
- PPN: LEV-DT830-IGB
CAD
$42.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Decora Plus Isolated Ground Duplex Receptacle Outlet, Heavy-Duty Hospital Grade, Tamper-Resistant, Smooth Face, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Brown
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Material Specifications
- Body Material
- PBT Polyester Blend
- Ground Clips
- Brass
- Grounding Screw
- #8 Hex Head, Triple-Drive Brass
- Mounting Screws
- Triple-Drive Plated Steel
- Shutter Mechanism
- Acetal
- Terminal Accom.
- #14 AWG - #10 AWG
- Terminal ID
- Brass - Hot, Silver - Neutral, Green - Ground,
- Termination
- Back or Side Wire
Face MaterialPBT Polyester Blend
Ground Contacts0.030" Brass
Line Contacts0.030" Phosphor Bronze
Product IDRatings are permanently marked on device
Strap MaterialSteel (Galvanized G60)
Terminal ClampsBrass
Terminal Screws#8 Triple-Drive Brass
Wire TypeStranded or Solid
Mechanical Specifications
- Brand
- Decora Plus
- Color / Feature
- Brown
- Feature 2
- Tamper-Resistant
- Function
- Isolated Ground
- Product ID
- Ratings are permanently marked on device
- Terminal Accom.
- #14 AWG - #10 AWG
- Termination
- Back or Side Wire
ColorBrown
Device TypeDuplex Receptacle Outlet
Feature 4Smooth Face
GradeHeavy-Duty Hospital Grade
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass - Hot, Silver - Neutral, Green - Ground,
Wire TypeStranded or Solid
AC Horsepower Rating
- Amperage
- 20 A
- Grounding
- Self-Grounding
- Pole
- 2
- Voltage
- 125 VAC
Dielectric VoltageWithstands 3000 V minimum
Horsepower Rating1 HP
Temperature RiseMax 30 °C temperature rise at full rated current
Wire3
Product Features
- Certification/Listing
- cULus, NOM-ANCE
Warranty
- Horsepower Rating
- 1 HP
Warranty10-Year Limited
Environmental Specifications
- Body Material
- PBT Polyester Blend
- Flammability
- Rated V-0 per UL 94
- Ground Contacts
- 0.030" Brass
- Line Contacts
- 0.030" Phosphor Bronze
- Operating Temperature
- -40°C to 75°C
- Strap Material
- Steel (Galvanized G60)
- Terminal Screws
- #8 Triple-Drive Brass
Face MaterialPBT Polyester Blend
Ground ClipsBrass
Grounding Screw#8 Hex Head, Triple-Drive Brass
Mounting ScrewsTriple-Drive Plated Steel
Shutter MechanismAcetal
Terminal ClampsBrass
Electrical Specifications
- Amperage
- 20 A
- Flammability
- Rated V-0 per UL 94
- Operating Temperature
- -40°C to 75°C
- Temperature Rise
- Max 30 °C temperature rise at full rated current
- Wire
- 3
Dielectric VoltageWithstands 3000 V minimum
GroundingSelf-Grounding
Pole2
Voltage125 VAC
Standards & Certifications
- ANSI
- C-73
- Certification/Listing
- cULus, NOM-ANCE
Applicable StandardsUL 498, Fed Spec W-C-596, CSA C22.2. No. 42
RoHSRoHS Compliant
