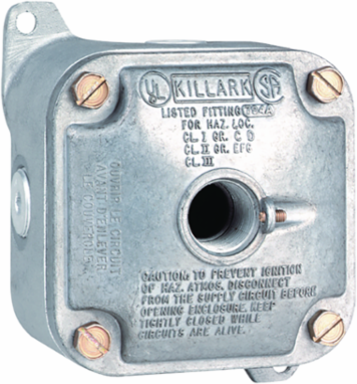

Killark JALX-21 Aluminum Outlet Body with Cover, 3/4 Inch Hub, 1/2 Inch Cover, 7.5 x 6 x 4 Inch
Killark JALX-21 Aluminum Outlet Body with Cover, 3/4 Inch Hub, 1/2 Inch Cover, 7.5 x 6 x 4 Inch
- MPN: JALX-21
- UPC: 783936365244
- PPN: HBL-JALX-21
- UNSPSC: 39121314
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$362.77/ EA
Description
JALX Series - Aluminum Outlet Body With Cover - With Hub Cover - Box Hub Size 3/4 Inch - Cover Hub Size 1/2 Inch
Features
- Option of blank or hub covers
- Cast mounting lugs
- Large wiring area
- Furnished with internal ground screw
- Hub covers include set screws for locking to lighting fixture stems
- Four drilled and tapped conduit openings in an “x” configuration (three, close-up plugs included to allow five variations from one body)
- Hub cover. Cast mounting lugs. Large wiring area. Furnished with internal ground screw. Hub covers include set screws for locking to lighting fixture stems. Four drilled and tapped conduit openings in an "X" configuration (three close-up plugs included to
Specifications
Specifications
- Country of Origin
- United States
- Height
- 4 in
- Application
- To provide access to conductors for pulling, splicing, and maintenance. May be used as a fixture hanger.
- Length
- 7.5 in
- Special Features
- Hub cover. Cast mounting lugs. Large wiring area. Furnished with internal ground screw. Hub covers include set screws for locking to lighting fixture stems. Four drilled and tapped conduit openings in an "X" configuration (three close-up plugs included to
- Width
- 6 in
- Finish Type
- Natural
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Gross Weight with Packaging
- 3.27
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Master Pack Description
- Each
Dimensions7.5 in x 6 in x 4 in
Hub SizeBox 3/4" Cover 1/2"
ColorGray
Size7.5 in x 6 in x 4 in
TypeOutlet Body With Cover
Cover TypeHub
ARRA CompliantContact Manufacturer
Description - Invoice3/4" AL JAL X TYPE W/1
Harmonization Code7609000000
Lead Time30 wk
Order Multiple1 EA
Sub Class CodeD30D237
Hub PatternX
SeriesJL/JAL Series
Carton - SCC-14 Next Lower Level Sub Pack00783936365244
Certifications
- EU RoHS Indicator
- Contact Manufacturer
