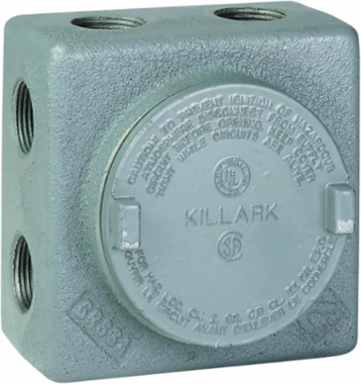

Killark GRSSA-1 1/2 Inch Aluminum Outlet Body, 13 Hub Configuration, 7.5 in x 6 in x 4 in
- MPN: GRSSA-1
- UPC: 783936230153
- PPN: HBL-GRSSA-1
- UNSPSC: 39121314
CAD
$259.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
1/2" Aluminum GRSSA Outlet Body, 13 Hub Configuration
Features
- Internal hubs
- Blank cover included (Cat. No. GRRBC)
- Compact design and multiple hub configurations
- Furnished with internal ground screw
- Cast-in brackets on cover for use with breaker-bar tools
- Finished with 13 internal hubs
- Internal hubs. Blank cover included (GRRBC). Compact design. Furnished with internal ground screw and 13 hubs (two on each side and five in the back). Five close-up plugs are supplied. Cast-in brackets on cover for use with breaker-bar tools.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Hub Size
- 1/2"
- Color
- Gray
- Size
- 7.5 in x 6 in x 4 in
- Type
- Outlet Body With Cover
- Cover Type
- Blank
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 1/2" GRSSA DIMENSIONS
- Harmonization Code
- 7609000000
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D237
- Gross Weight with Packaging
- 3.15
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936230153
- NAICS Code
- 3359326103
Dimensions7.5 in x 6 in x 4 in
Height4 in
ApplicationConduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes.
Length7.5 in
Special FeaturesInternal hubs. Blank cover included (GRRBC). Compact design. Furnished with internal ground screw and 13 hubs (two on each side and five in the back). Five close-up plugs are supplied. Cast-in brackets on cover for use with breaker-bar tools.
Width6 in
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11716
UL File NumberE10514
SeriesGR Outlet Bodies Series
BOX SIZE(in)
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
