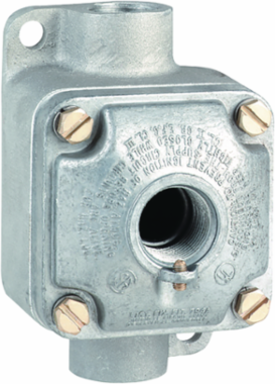

Killark JLC-22 Aluminum Outlet Body with Cover, Hub Size 3/4 Inch, Dimensions 6.25 x 6 x 4.25 Inch
Killark JLC-22 Aluminum Outlet Body with Cover, Hub Size 3/4 Inch, Dimensions 6.25 x 6 x 4.25 Inch
- MPN: JLC-22
- UPC: 783936365664
- PPN: HBL-JLC-22
- UNSPSC: 39121314
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$355.72/ EA
Description
JL Series - Aluminum Outlet Body With Cover - With Hub Cover - Box Type C - Box Hub Size 3/4 Inch - Cover Hub Size 3/4 Inch
Features
- Option of blank or hub covers
- Cast mounting lugs
- Large wiring area
- Furnished with internal ground screw
- Hub covers include set screws for locking to lighting fixture stems
- Cast external hubs with integral bushings
- Hub cover. Cast mounting lugs. Large wiring area. Furnished with internal ground screw. Hub covers include set screws for locking to lighting fixture stems. Cast external hubs with integral bushings.
Specifications
Specifications
- Country of Origin
- Mexico
- Height
- 4.25 in
- Application
- To provide access to conductors for pulling, splicing, and maintenance. May be used as a fixture hanger.
- Length
- 6.25 in
- Special Features
- Hub cover. Cast mounting lugs. Large wiring area. Furnished with internal ground screw. Hub covers include set screws for locking to lighting fixture stems. Cast external hubs with integral bushings.
- Width
- 6 in
- Finish Type
- Natural
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Gross Weight with Packaging
- 1.68
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Master Pack Description
- Each
Dimensions6.25 in x 6 in x 4.25 in
Hub Size3/4"
ColorGray
Size6.25 in x 6 in x 4.25 in
TypeOutlet Body With Cover
Cover TypeHub
ARRA CompliantContact Manufacturer
Description - Invoice3/4" AL JL C TYPE W/3
Harmonization Code7616995190
Lead Time30 wk
Order Multiple1 EA
Sub Class CodeD30D237
Hub PatternC
SeriesJL/JAL Series
Carton - SCC-14 Next Lower Level Sub Pack00783936365664
Certifications
- EU RoHS Indicator
- Contact Manufacturer
