IPEX 277003 Scepter PVC Junction Box 6 Inch x 3 Inch x 4 Inch, Grey, NEMA Rated
- MPN: 277003
- UPC: 622454418653
- PPN: IPX-277003
CAD
$49.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

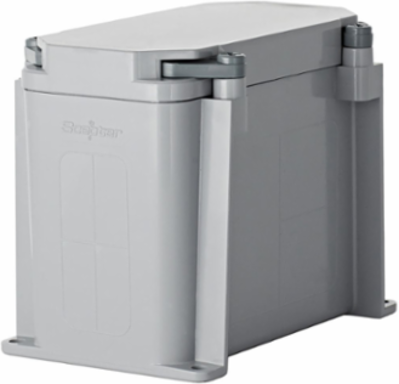

The Scepter JBox is ideally suited for indoor and outdoor use and made to perform in the most demanding environments. Made of PVC it is extremely durable and resistant to impact in a wide range of temperatures and not adversely affected by water and chemicals. The Scepter JBox is entirely non-metallic, eliminating corrosion concerns with screws and other metal parts and NEMA 1, 2, 3R, 4, 4X, 6*, 6P*, 12 and 13 rated.
Features
- Fasteners are close by hand and tool assist to open and 100% non-metallic
- Integrated Gasket is permanently fixed to the cover – no installation required
- Molded Mounting Feet are located on corners out of the way of conduit connections
- Built-in Gridlines create an easy reference for drilling knockouts
Documentation & Downloads
Specifications
Additional
| Size | 6 in x 3 in x 4 in |
|---|---|
| Material | PVC |
| NEMA Rating | 1, 2, 3R, 4, 4X, 6, 6P, 12, 13 |
| Gasket Material | PVC proprietary (4-12 inch), Neoprene (14-16 inch) |
| Outdoor Suitability | UL 746C |
| NAFTA | Yes |
| Weight | 0.574 kg |
|---|---|
| Color | Grey |
| Compliance | UL 50, UL 50E, CSA C22.2 No. 94 series |
| Flammability Rating | UL 94V-0 |
| Country of Origin | Canada |
