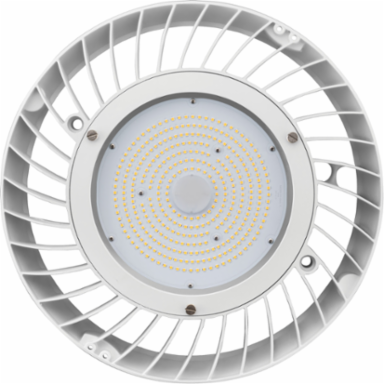

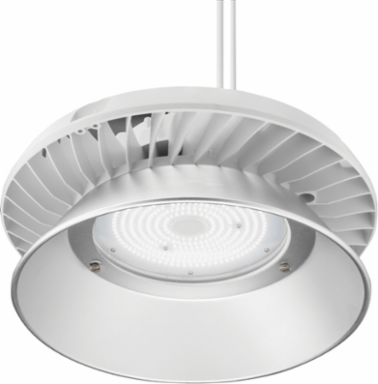

Lithonia Lighting JEBL 12L 50K 80CRI WH LED High Bay Light 12000 Lumens 95W Dimmable Round
- MPN: JEBL 12L 50K 80CRI WH
- UPC: 191848153901
- PPN: LTH-JEBL 12L 50K 80CRI WH
- UNSPSC: 39112102
CAD
$189.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Design Select
Features

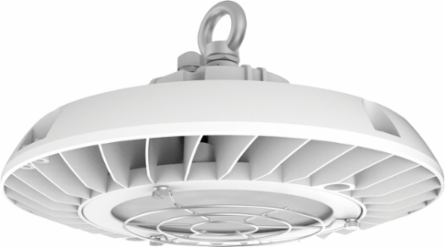

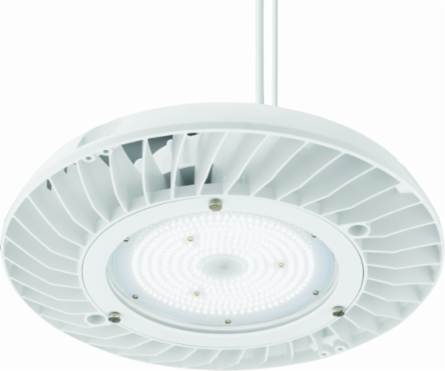

- TECHNOLOGY: JEBL features a white die-cast aluminum housing along with a removable die-cast aluminum driver housing. Powder coat corrosion resistant finish provides 500 hours salt fog rating.
- ENERGY SAVINGS: Easily replace 4-lamp T5HO, 6-lamp T8 with LEDs that save energy and reduce total cost of ownership
- DIMMING: 0-10V dimming standard for a dimming range of 100 to 10 percent
- RATINGS: CSA listed to US and Canadian Safety Standards; Wet location listed
- VOLTAGE: Input voltage is MVOLT (120-277V) and HVOLT (347-480V)
- HOURS OF LIFE: L90 > 54,000 hours

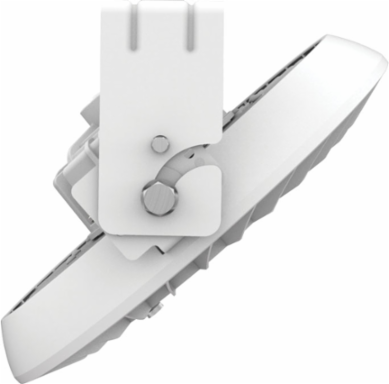

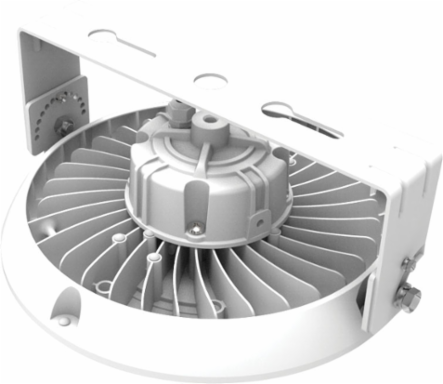

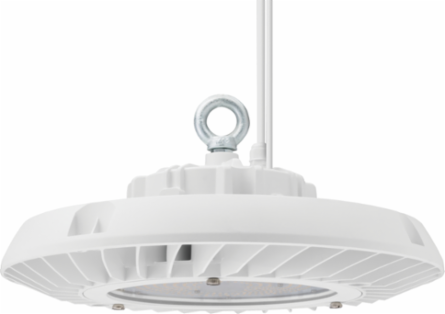

- INSTALLATION: Install 1/4 in. NPT eye bolt with 1/2 in. thick loop and 6 ft. cord with dimming lead provided for easy installation and optional surface mount brackets
- BATTERY: Field-installable LED emergency driver sold separately
- WARRANTY: 5-year limited warranty

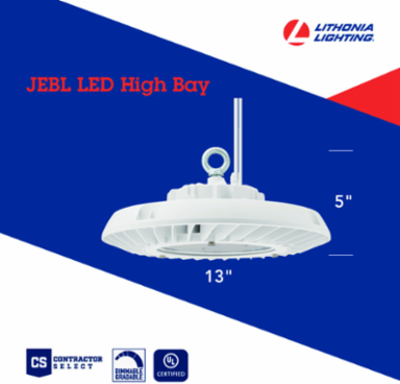

- DIMENSIONS: diameter 13 in. x depth 5 in.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Color
- White
- Wattage
- 95.000000000000000 W
- Type
- High Bay
- Shape
- Round
- Average Life
- 54, 000 Hours
Voltage Rating120-277
MountingPendant, Suspended
Fixture TypeHigh Bay
Lamp TypeLED - Static
DimmableYes
Lumens12, 000 LM LM
