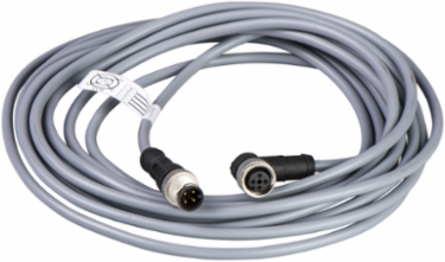

Telemecanique Sensors XZCRV1512041C5 Jumper cable XZ, male straight M12 4 pin, female elbowed M12 4 pin, PVC 5 m
- MPN: XZCRV1512041C5
- PPN: TES-XZCRV1512041C5
CAD
$39.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Jumper cable XZ, male straight M12 4 pin, female elbowed M12 4 pin, PVC 5 m
Documentation & Downloads
Specifications
Key Specifications
- Accessory / Separate Part Category
- cabling accessory
Accessory / Separate Part Typejumper cable
Complementary
- Collar Material
- metal
- Cable Outer Diameter
- 4.6 mm
- [Ue] Rated Operational Voltage
- 250 V AC || 300 V DC
- Insulation Resistance
- >= 1000 MOhm
- [In] Rated Current
- 3 A
- Jumper Cable End 1
- M12 male 4 pins straight screw-on
Jumper Cable End 2M12 female 4 pins elbowed screw-on
Wire Insulation MaterialPVC
Maximum Resistance Across Terminals5000 mOhm
Cable Length5 m
Cable Composition4 x 0.25 mm²
Net Weight0.23 kg
Environment
- Product Certifications
- cULus
- Ambient Air Temperature For Storage
- -25-80 °C
Ambient Air Temperature For Operation-25-80 °C static
Ip Degree Of ProtectionIP67 || IP65
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
