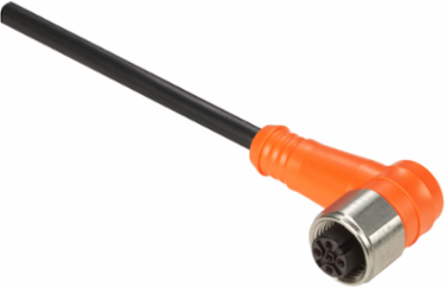

Telemecanique Sensors XZCPA1241L5 Pre wired connectors XZ, elbowed female, M12, 4 pins, cable PVC 5 m
Telemecanique Sensors XZCPA1241L5 Pre wired connectors XZ, elbowed female, M12, 4 pins, cable PVC 5 m
- MPN: XZCPA1241L5
- PPN: TES-XZCPA1241L5
- UNSPSC: 39121528
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$40.38/ EA
Description
This product is part of the XZ range, an offer of cabling accessories. This pre-wired connector is an accessory for general purpose photoelectric sensors. It is ideal for material handling, packaging, labelling, assembly, lift, escalators or food and beverage industries. Ex Osiris, OsiSense XU is for non-contact sensing up to a hundred meters of objects of any shape and any type. The length of this cable is 16.4 feet (5 meters) and diameter is 0.21 inches (5.3 mm). It is furnished with 4-pin M12 elbowed female connector for electrical connection. This pre-wired connector provides screw-on cable connector fixing. It is connector with a rated operational voltage of 250VAC and 300VDC and a rated current of 4A. It is an IP69K rated product. The connector collar is made of 316L stainless steel and cable has a PVC insulation. It weighs 0.42 lbs. XZ range includes a wide range of cordsets, connectors, and connection boxes designed for a simple connection process and a quick reference identification. The XU range offers a full line of photoelectric proximity sensors dedicated to material handling, packaging, labelling, lift, food and beverage industries.
Specifications
Environment
- Ambient Air Temperature For Operation
- -25-85 °C static
- Ip Degree Of Protection
- IP69K
Ambient Air Temperature For Storage-35-100 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Mercury FreeYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Complementary
- Collar Material
- stainless steel 316L
- Cable Outer Diameter
- 5.3 mm
- Wire Insulation Material
- PVC
- Cable Connector Fixing
- screw-on
- [In] Rated Current
- 4 A
- Status Led
- without
- Contact Resistance
- 5000 µOhm
Electrical Connectionelbowed female connector M12, 4 pins
Minimum Insulating Resistance1 GΩ
[Ue] Rated Operational Voltage250 V AC || 300 V DC
Cable Length5 m
Cable Composition4 x 0.34 mm²
Net Weight0.19 kg
Specifications
- Series Name
- Application
- Accessory / Separate Part Category
- cabling accessory
Range Of ProductTelemecanique Cabling components
Accessory / Separate Part Typepre-wired connectors
