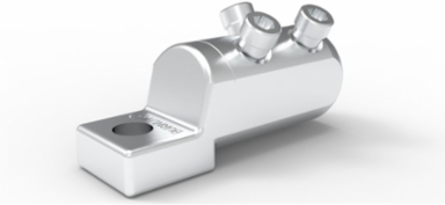

Burndy KASB28U12 QIKSHEARTM Shear Bolt Lug, 2/0-4/0 AWG 1-Hole, 1/2 Inch Hole, 35kV Rating
- MPN: KASB28U12
- UPC: 621945658707
- PPN: BUR-50124785
- UNSPSC: 39121408
CAD
$130.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mechanical Shear Bolt Lug. 2/0-4/0 AWG, 1-hole, 1/2" Stud, Dual Rated, Tin Plated
Features
- No Tooling or Die Investement Required, no crimp tools necessary
- Dual Rated AL9CU for use with both copper and aluminum conductor
- cULus Listed Wire Connector to UL486A-486B
- Up to 35kV voltage rating
- Tin Plated aluminum connectors and bolts reduce galvanic corrosion and oxide build up
- Range-taking capabilities on most sizes
Specifications
Key Specifications
- Country of Origin
- Mexico
- Height
- 1.35 in
- Product Type
- 1 Cable
- Width
- 1.1 in
- Class Code
- B51
- Harmonization Code
- 8535908020
- Sub Class Code
- B51BFSF
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 4.890 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 14
- Package - GTIN - Package
- 30621945658708
- Package Weight
- 0.000 lb.
- Pallet Height
- 47.250 in
- Pallet Weight
- 1585.350 lb.
Dimensions4.1 in x 1.1 in x 1.35 in
Length4.1 in
TypeBolted Lugs & Terminals
General Literature Asset 1 Display TextQIKSHEAR® Bolt Connectors
Freight Class Code16027000
Image Actual Or RepresentativeA
SeriesQIKSHEAR™ Series
BOX SIZE4.750x7.100x6.250 (in)
Carton - Number of Sub Packs14
Carton - SCC-14 Next Lower Level Sub Pack00621945658707
Case - SCC-14 Next Lower Level Sub Pack30621945658708
Package Quantity48 EA
Pallet - GTIN - Package70621945658706
Pallet Length42.000 in
Pallet Width42.000 in
