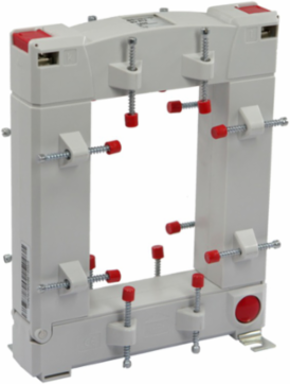

Weidmuller 2656290000 KCMA-RCM-812D
- MPN: 2656290000
- PPN: WDM-2656290000
CAD
$1491.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Primary current: 18 A, Round conductor: 80.00 mm
Documentation & Downloads
Specifications
Dimensions Of Live Conductors
- Round conductor
- 80 mm
Electrical Attributes
- Primary current
- 18 A
- Secondary current, min.
- 0.03 A
Secondary current0....30 mA
Tolerance class1
Approvals
- ROHS
- Conform

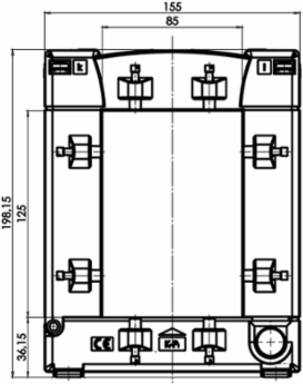

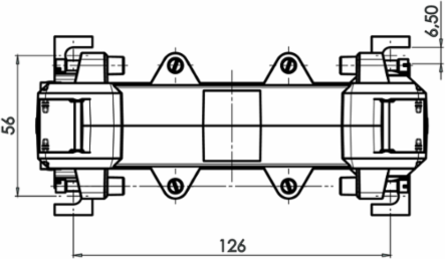

Dimensions And Weights
- Length
- 155 mm
- Width
- 58 mm
- Depth
- 198 mm
- Net weight
- 240 g
Length (inches)6.102 inch
Width (inches)2.283 inch
Depth (inches)7.795 inch
Classifications
- ETIM 6.0
- EC002048
- eClass 9.0
- 27-21-09-02
- eClass 10.0
- 27-21-09-02
ETIM 7.0EC002048
eClass 9.127-21-09-02
Technical Data
- Insulation class
- E
- Operating voltage U
- 0,72 kV
Nominal frequency50 Hz
Thermal rated continuous current I60 x Irated for 1 second
Insulation Coordination
- Standard
- EN 60044⁄1
Temperatures
- Operating temperature, max.
- 45 °C
- Operating temperature
- -5 °C...45 °C
Operating temperature, min.-5 °C
