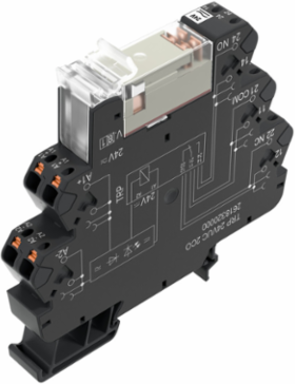

Weidmuller 2617910000 TERMSERIES Relay Module, 1 CO Contact, 16 A, 24 V UC, 12.8 mm Wide
- MPN: 2617910000
- PPN: WDM-2617910000
CAD
$37.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TERMSERIES, Relay module, Number of contacts: 1 CO contact AgNi, Rated control voltage: 24 V UC ±10 %, Continuous current: 16 A, PUSH IN with actuator
Documentation & Downloads
Specifications
General Data
- Rail
- TS 35
- Mechanical switch position indicator
- No
- UL 94 flammability rating
- V-0
Test buttonNo
Colourblack
Approvals
- Approvals
- CULUS
UL File Number SearchE141197

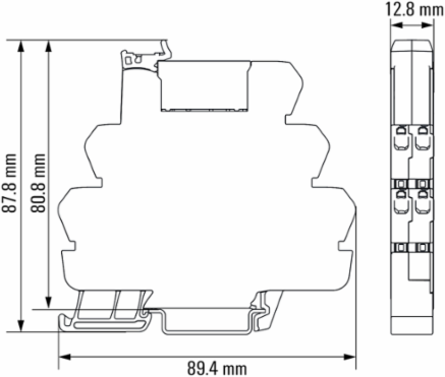

Dimensions And Weights
- Width
- 12.8 mm
- Height
- 89.4 mm
- Depth
- 87.8 mm
- Net weight
- 0 g
Width (inches)0.504 inch
Height (inches)3.52 inch
Depth (inches)3.457 inch
Connection Data
- Wire connection method
- PUSH IN with actuator
- Clamping range, rated connection
- 1.5 mm²
- Clamping range, max.
- 2.5 mm²
- Wire connection cross section AWG, max.
- AWG 14
- Wire cross-section, solid, max.
- 2.5 mm²
- Wire connection cross section, finely stranded, max.
- 2.5 mm²
- Wire cross-section, finely stranded, max. (AWG)
- AWG 14
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 1.5 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), max.
- 1.5 mm²
- Twin wire-end ferrules, max.
- 1 mm²
Stripping length, rated connection8 mm
Clamping range, min.0.14 mm²
Wire connection cross section AWG, min.AWG 26
Wire cross-section, solid, min.0.14 mm²
Wire connection cross-section, finely stranded, min.0.14 mm²
Wire cross-section, finely stranded, min. (AWG)AWG 26
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.0.15 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.0.15 mm²
Twin wire-end ferrules, min.0.5 mm²
Blade size0.4 x 2.0 mm
Contact Data
- Contact type
- 1 CO contact (AgNi)

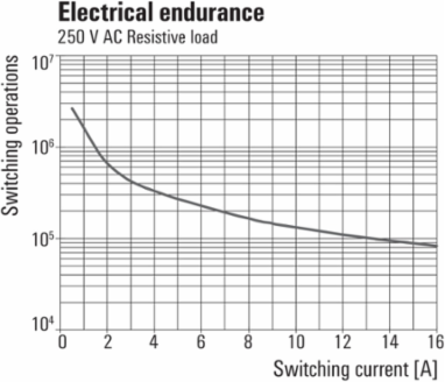

Mechanical service life30 x 106 switching cycles
Input
- Rated control voltage
- 24 V UC ± 10 %
- Rated current DC
- 14 mA
- Pull-in/drop-out voltage, typ.
- 17.5 V / 7.5 V AC 18.9 V / 6.8 V DC
- Status indicator
- Green LED
- Coil voltage of the replacement relay deviating from the rated control voltage
- Yes
Rated current AC16 mA
Power rating390 mVA / 350 mW
Pull-in/drop-out current, typ.11.9 mA / 4.4 mA AC 10.4 mA / 2.8 mA DC
Protective circuitRectifier
Coil voltage of the replacement relay24 V DC
Classifications
- ETIM 6.0
- EC001437
- eClass 9.0
- 27-37-16-01
- eClass 10.0
- 27-37-16-01
ETIM 7.0EC001437
eClass 9.127-37-16-01
Output
- Rated switching voltage
- 250 V AC
- Max. switching voltage, DC
- 250 V
- Inrush current
- 30 A / 4 s

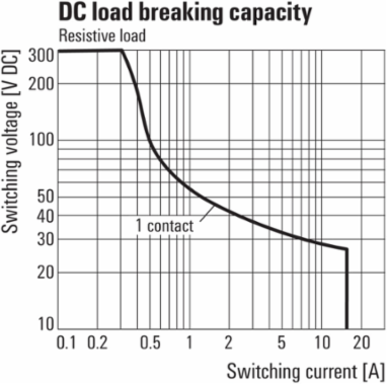

- DC switching capacity (resistive), max.
- 384 W @ 24 V
- Switch-off delay
- ≤ 16 ms
- Max. switching frequency at rated load
- 0.1 Hz
Max. switching voltage, AC250 V
Continuous current16 A
AC switching capacity (resistive), max.4000 VA
Switch-on delay≤ 5 ms
Min. switching power10 mA @ 10 V, 100 mA @ 5 V
Insulation Coordination
- Rated voltage
- 300 V
- Pollution severity
- 2
- Dielectric strength, Input/Output
- 1.2 kVeff / 5 s
- Dielectric strength of open contact
- 1 kVeff / 1 min
- Impulse withstand voltage
- 6 kV (1.2/50 µs)
Surge voltage categoryIII
Protection degreeIP20
Creepage and clearance distance input – output≥ 5.5 mm
Dielectric strength to mounting rail4 kVeff / 1 Min.
Temperatures
- Humidity
- 5-95% relative humidity, Tu = 40°C, without condensation
- Operating temperature, min.
- -40 °C
- Storage temperature, min.
- -40 °C
- Storage temperature
- -40 °C...85 °C
Operating temperature, max.60 °C
Storage temperature, max.85 °C
Operating temperature-40 °C...60 °C
Ratings Iecex/Atex/Cul
- Certificate no. (cULus)
- E141197
Further Details Of Approvals / Standards
- Standards
- EN 50178, EN 55011, EN 61000-6-1, 2, 4
Certificate no. (cULus)E141197
