Weidmuller 9457921000 SAIL-VSC-10U

  • MPN: 9457921000
  • PPN: WDM-9457921000

CAD

$27.27

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Valve plug, One end without connector - valve plug, C

Documentation & Downloads

Specifications

Approvals

ApprovalsEAC
ROHSConform

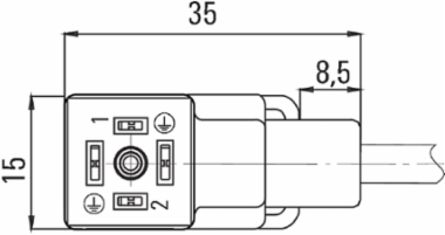

Dimensions And Weights

Net weight318 g

General Technical Data

VersionOne end without connector - valve plug
CodingIndustrial design C (9.4 mm)
Contact surfacetinned
Rated voltage24 V
Temperature range of housing-25…+80 °C

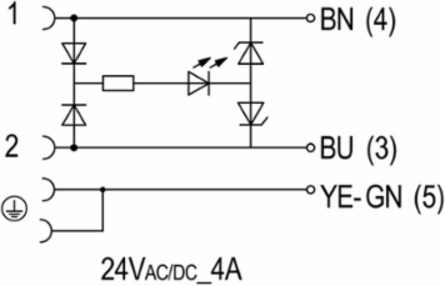

All valve plugs are fitted with protective circuitsZener diode
Connection threadMiscellaneous
Protection degreeIP67, when screwed in
LEDYes
Rated current4 A
Tightening torqueMounting screw M3: 0.4 Nm

Technical Specifications For Cable

Number of poles3
Outside diameter4.6 ± 0.2 mm
ShieldedNo
Colour codingbrown, blue, Green/yellow
Sheathing colourblack
Temperature range, moving-25...80 °C
Suitable for cable carriersYes
Bending radius, min., stationary5 x cable diameter
Acceleration5 m/s²
Bending cycles2 Mio
Core cross-section0.5 mm²
Cable length10 m
InsulationPP
Sheath materialPUR
HalogenNo
Temperature range, stationary-50...80 °C
Torsion resistance0 °/m
Bending radius, min., moving10 x cable diameter
Speed200 m/min
Resistant to welding beadsNo

Classifications

ETIM 6.0EC001855
eClass 9.027-06-03-12
eClass 10.027-06-03-12
ETIM 7.0EC001855
eClass 9.127-06-03-11
UNSPSC30-21-18-10

Environmental Product Compliance

REACH SVHCLead 7439-92-1

Temperatures

Operating temperature range, max.80 °C
Operating temperature, max.80 °C
Operating temperature range, min.-25 °C
Operating temperature, min.-25 °C

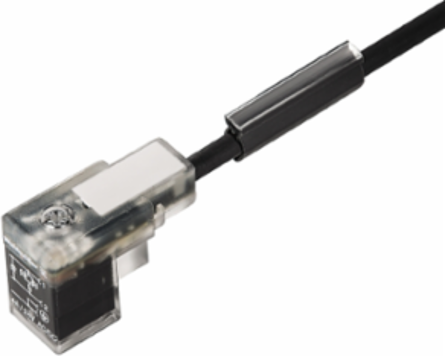

SAIL-VSC-10U
SAIL-VSC-10U
SAIL-VSC-10U
SAIL-VSC-10U
