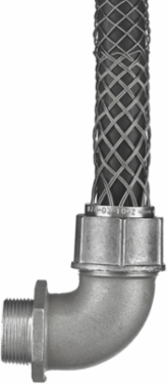

Hubbell Wiring Device-Kellems 074011230 Deluxe Cord Grip 90 Degree Male 1-1/4 Inch NPT, 0.750-0.875 Inch Cable Diameter

Deluxe Cord Grip 90 Degree Male 1-1/4 Inch NPT, 0.750-0.875 Inch Cable Diameter
Deluxe Cord Grip 90 Degree Male 1-1/4 Inch NPT, 0.750-0.875 Inch Cable Diameter
  • MPN: 074011230
  • UPC: 783585341347
  • PPN: HBL-074011230
  • UNSPSC: 39121431

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$418.88/ EA

Description

Kellems Wire Management, Deluxe Cord Grips, 90 Degree Male, 0.750-0.875", 1.25" with Mesh

Features

  • Stainless steel mesh is corrosion resistant
  • Multiweave grip gives cable arc-of-bend control
  • Endless weave provides easy cable/flexible conduit installation
  • Standard Product

Specifications

Specifications

Country of Origin
United States
Width
3.750 in
Performance
Environmental - Flammability - UL 94HB (Strand grip), UL 94V-2(Fitting);Environmental - Hazardous Locations - Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C;Environmental - Operating Temperatures - –30°F to +240°F (–34°C to +115°C);Environmental - Wet Locations - Suitable for use in wet locations when used with a listed sealing ring between box and fitting
Conductor Range
0.75-0.875 in (1.90-2.22 mm)
Number of Conductors
Single
Standard
UL Listed
Type
90 Degree Male Thread
General Literature Asset 2 Display Text
Pulp & Paper Solutions
Cable Size
.750"-.875" (1.90-2.22)
Number Of Conductors
Single
Thread Size
1 1/4" NPT
Description - Invoice
90 MALE, DCG, .87-1.0"; 1.25" W/MESH
Harmonization Code
7326200090
MSDS Flag
No
Material - Mounting Hardware
Locknut or Tapped Opening
Series
Deluxe Cord Grips
BOX SIZE
3.200x22.700x5.400 (in)
Carton - Number of Sub Packs
2
Carton - SCC-14 Next Lower Level Sub Pack
783585341347
Each - Pack Description
Each
Cable Diameter Range0.750 in-0.875 in
Industry Standard(s)UL Listed
Application90 Degree Male- Form 5
Environmental ConditionsSuitable For Use In Wet Locations When Used With A Listed Sealing Ring Between Box And Fitting.
Special FeaturesStandard Product
Temperature RatingMinimum -30 Deg F to 240 Deg F (-34 Deg C to 115 Deg C)
General Literature Asset 1 Display TextTray Cable Cord Connectors FAQ
General Literature Asset 3 Display TextPULP & PAPER SOLUTIONS
Display Size1 1/4" NPT
StyleFor Insulated Cables
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA52A480
MaterialAluminum Fittings, Stainless Steel Mesh
Base Unit of MeasureEA
Carton - Gross Weight per Pack4.200 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Lowest Level UOMEach

Certifications

EU RoHS Indicator
Yes
