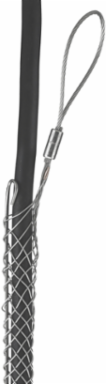

Hubbell Wiring Device-Kellems 03310011 Slack Pulling Grip Offset Eye 3.50-3.99 Inch, 2400 lb Load Capacity
- MPN: 03310011
- UPC: 783585316765
- PPN: HBL-03310011
- UNSPSC: 39121722
CAD
$409.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Kellems Wire Management, Slack Pulling Grips, Rod Closing, Offset Eye, 3.50-3.99"
Features
- Single offset eye for easy attachement to pulling line
- Rod closing for split lace closure
- Single weave galvanized steel mesh
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Cable Diameter Range
- 3.50 in-3.99 in
- Industry Standard(s)
- CSA Certified
- Standards - RoHS Compliance Status
- CM
- Cable Size
- 3.50"-3.99" (8.89-10.13)
- Special Features
- Standard Product
- Type
- Offset Eye
- General Literature Asset 2 Display Text
- PULP & PAPER SOLUTIONS
- Cable Specification
- UL Listed Circuit Wire
- Style
- Split Mesh, Rod Closing, Single Weave
- Description - Invoice
- SLACK PULL GRIP SGL EYE, 3.5-4.0" ROD
- Harmonization Code
- 7326200090
- MSDS Flag
- No
- Sub Class Code
- A52A480
- Construction
- Woven
- Series
- Slack Grip Series
- BOX SIZE
- 5.500x44.000x10.000 (in)
- Carton - Number of Sub Packs
- 2
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585316765
- Case Weight
- 22.400 lb.
- Lowest Level UOM
- Each
Approx Breaking Strength12,000 lb.
Width6.000 in
PerformanceMechanical - Approximate Breaking Strength - 12,000 (53,376) Lbs. (N);Mechanical - Working Load - 2400 (10675.2) Lbs. (N)
ApplicationGeneral Cable Pulling
Load2400
StandardCSA Certified
General Literature Asset 1 Display TextPulp & Paper Solutions
General Literature Asset 3 Display TextFOOD & BEVERAGE SOLUTIONS
Load Capacity2400
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number08642964
Material - Mounting HardwareNon-Mounted
MaterialSteel, Galvanized
Base Unit of MeasureEA
Carton - Gross Weight per Pack3.800 lb.
Carton - Pack DescriptionCarton
Carton - Total Units2 EA
Each - Pack DescriptionEach
NAICS Code3359323114
Certifications
- EU RoHS Indicator
- Yes
