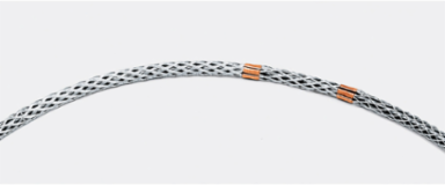

Hubbell Wiring Device-Kellems 03316002 Wire Management Splicing Grips, 0.75-0.88 Inch, 12500 lb Strength
- MPN: 03316002
- UPC: 783585317175
- PPN: HBL-03316002
- UNSPSC: 39121449
CAD
$1066.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Kellems Wire Management, Splicing Grips, Non-rotating Wire Rope Splicing, .75-.88"
Features
- Galvanized steel meshs contructed in triple, double and single weave
- Non-rotating barrel
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Cable Diameter Range
- 0.75 in-0.88 in
- Industry Standard(s)
- CSA Certified
- Application
- Wire Rope Splicing
- Environmental Conditions
- No Limitations
- Special Features
- Standard Product
- Type
- Regular Wire Rope
- General Literature Asset 2 Display Text
- PULP & PAPER SOLUTIONS
- Cable Size
- .75"-.88" (1.90-2.22)
- Number Of Conductors
- 1
- Class Code
- A52
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A52A480
- Material
- Steel, Galvanized
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 43.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 20 EA
- Each - Pack Description
- Each
- NAICS Code
- 3359323114
Approx Breaking Strength12,500 lb.
Width9.750 in
PerformanceMechanical - Approximate Breaking Strength - 12,500 (55,600);Mechanical - Approximate Strength of Grip per Foot - 6.75 (1.90);Mechanical - Working Load - (program formula 5% of Approximate Breaking Strength)
ColorMetallic
Number of Conductors1
StandardCSA Certified
General Literature Asset 1 Display TextPulp & Paper Solutions
General Literature Asset 3 Display TextFOOD & BEVERAGE SOLUTIONS
Display SizeStandard Sized Product
StyleClosed Mesh, Triple, Double, Single Weave
Description - InvoiceWIRE ROPE SPLICE, .75-.875"; STD
Harmonization Code7326200090
MSDS FlagNo
Material - Mounting HardwareOn Cable Ends
SeriesWire Rope Grips Series
BOX SIZE12.300x32.100x18.700 (in)
Carton - Number of Sub Packs20
Carton - SCC-14 Next Lower Level Sub Pack00783585317175
Case Weight46.750 lb.
Lowest Level UOMEach
