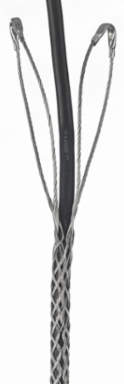

Hubbell Wiring Device-Kellems 02207007 Support Grips Double Eye Split Mesh Lace Closing 3.00-3.49 Inch

Support Grips Double Eye Split Mesh Lace Closing 3.00-3.49 Inch
Support Grips Double Eye Split Mesh Lace Closing 3.00-3.49 Inch
  • MPN: 02207007
  • UPC: 783585304540
  • PPN: HBL-02207007
  • UNSPSC: 39121719

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1034.35/ EA

Description

Support Grips, Double Eye, Double Weave, Split Mesh, Lace Closing, Tin-Coated Bronze, 3.00-3.49"

Features

  • Double eye
  • Strand equalizers position wires for equal loading throughout grip length
  • Eye assemblies provide eye reinforcement at support hardware
  • Split Mesh- Lace Closing

Specifications

Specifications

Country of Origin
United States
Cable Diameter Range
3 in-3.49 in
Industry Standard(s)
CSA Certified
Application
Double Eye
Special Features
Split Mesh- Lace Closing
Type
Double Eye
General Literature Asset 2 Display Text
PULP & PAPER SOLUTIONS
Style
Split Mesh, Lace Closing
Description - Invoice
HD DBL EYE SUP GRIP, 3.0-3.5"; BRZ, LACE
Harmonization Code
7419805050
MSDS Flag
No
Material - Mounting Hardware
Screw Hook or Beam Clamp
Material
Bronze, Tin Coated
Base Unit of Measure
EA
Carton - Gross Weight per Pack
70.250 lb.
Carton - Pack Description
Carton
Carton - Total Units
10 EA
Lowest Level UOM
Each
Approx Breaking Strength10,060 lb.
Width5.500 in
PerformanceMechanical - Approximate Breaking Strength - 10,060 (44,747);Mechanical - Working Load - 1006 (4474.7) Lbs. (N)
Cable Size3.00"-3.49" (7.62-8.86)
StandardCSA Certified
General Literature Asset 1 Display TextPulp & Paper Solutions
General Literature Asset 3 Display TextFOOD & BEVERAGE SOLUTIONS
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA52A480
ConstructionWoven
SeriesHeavy Duty
BOX SIZE12.875x32.625x18.625 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack783585304540
Each - Pack DescriptionEach

Certifications

EU RoHS Indicator
