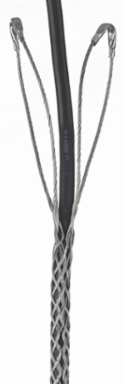

Hubbell Wiring Device-Kellems 02207005 Double Eye Support Grip, 2.00-2.49 Inch, Split Mesh, Lace Closing, Tin Coated Bronze, 8050 lb Breaking Strength
- MPN: 02207005
- UPC: 783585304526
- PPN: HBL-02207005
- UNSPSC: 39121719
CAD
$673.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Support Grips, Double Eye, Double Weave, Split Mesh, Lace Closing, Tin-Coated Bronze, 2.00-2.49"
Features
- Double eye
- Strand equalizers position wires for equal loading throughout grip length
- Eye assemblies provide eye reinforcement at support hardware
- Split Mesh- Lace Closing
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Puerto Rico |
|---|---|
| Cable Diameter Range | 2 in-2.49 in |
| Industry Standard(s) | CSA Certified |
| Standards - RoHS Compliance Status | CM |
| Cable Size | 2.00"-2.49" (5.08-6.32) |
| Standard | CSA Certified |
| Weight | 4 lb. |
| General Literature Asset 2 Display Text | PULP & PAPER SOLUTIONS |
| Style | Split Mesh, Lace Closing |
| Description - Invoice | HD DBL EYE SUP GRIP, 2.0-2.5"; BRZ, LACE |
| Harmonization Code | 7419805050 |
| MSDS Flag | No |
| Material - Mounting Hardware | Screw Hook or Beam Clamp |
| Material | Bronze, Tin Coated |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 41.250 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Each - Pack Description | Each |
| NAICS Code | 3359323114 |
| Approx Breaking Strength | 8,050 lb. |
|---|---|
| Width | 5.500 in |
| Performance | Mechanical - Approximate Breaking Strength - 8,050 (35,806);Mechanical - Working Load - 805 (3580.6) Lbs. (N) |
| Application | Double Eye |
| Special Features | Split Mesh- Lace Closing |
| Type | Double Eye |
| General Literature Asset 1 Display Text | Pulp & Paper Solutions |
| General Literature Asset 3 Display Text | FOOD & BEVERAGE SOLUTIONS |
| Class Code | A52 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A52A480 |
| Construction | Woven |
| Series | Heavy Duty Series |
| BOX SIZE | 2.500x63.500x9.000 (in) |
| Carton - Number of Sub Packs | 5 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585304526 |
| Case Weight | 27.600 lb. |
| Lowest Level UOM | Each |
