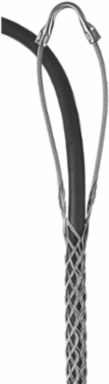

Hubbell Wiring Device-Kellems 02207013 Support Grip Single Eye Split Mesh Lace Closing 1.50-1.99 Inch Bronze
- MPN: 02207013
- UPC: 783585304601
- PPN: HBL-02207013
- UNSPSC: 39121719
CAD
$484.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Support Grips, Single Eye, Double Weave, Split Mesh, Lace Closing, Tin-Coated Bronze, 1.50-1.99"
Features
- Heavy Duty, Single Eye
- Strand equalizers position wires for equal loading throughout grip length
- Eye assemblies provide eye reinforcement at support hardware
- Split Mesh- Lace Closing
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Cable Diameter Range
- 1.5 in-1.99 in
- Industry Standard(s)
- CSA Certified
- Application
- Single Eye
- Special Features
- Split Mesh- Lace Closing
- Type
- Single Eye
- General Literature Asset 2 Display Text
- PULP & PAPER SOLUTIONS
- Style
- Split Mesh, Lace Closing
- Description - Invoice
- HD SGL EYE SUP GRIP, 1.5-2.0"; BRZ, LACE
- Harmonization Code
- 7419805050
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Hook or Beam Clamp
- Material
- Bronze, Tin Coated
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 9.750 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
- Lowest Level UOM
- Each
Approx Breaking Strength4,280 lb.
Width5.000 in
PerformanceMechanical - Approximate Breaking Strength - 4,280 (19,037);Mechanical - Working Load - 428 (1903.7) Lbs. (N)
Cable Size1.50"-1.99" (3.81-5.05)
StandardCSA Certified
General Literature Asset 1 Display TextPulp & Paper Solutions
General Literature Asset 3 Display TextFOOD & BEVERAGE SOLUTIONS
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA52A480
ConstructionWoven
SeriesHeavy Duty Series
BOX SIZE2.000x56.000x6.500 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack783585304601
Each - Pack DescriptionEach
NAICS Code3359323114
