Hubbell Wiring Device-Kellems 02403009 Stainless Steel Support Grip, Double Eye, 2.00-2.49 Inch, 895 lb Working Load

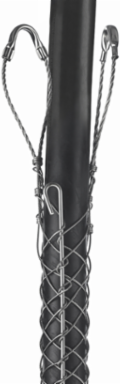

Stainless Steel Support Grip, Double Eye, 2.00-2.49 Inch, 895 lb Working Load
Stainless Steel Support Grip, Double Eye, 2.00-2.49 Inch, 895 lb Working Load
  • MPN: 02403009
  • UPC: 783585310305
  • PPN: HBL-02403009
  • UNSPSC: 39121719

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$393.68/ EA

Description

Support Grips, Double Eye, Single Weave, Split Mesh, Rod Closing, Stainless Steel, 2.00-2.49"

Features

  • Double eye
  • Strand equalizers position wires for equal loading throughout grip length
  • Eye assemblies provide eye reinforcement at support hardware
  • Split Mesh- Rod Closing

Specifications

Specifications

Country of Origin
Puerto Rico
Cable Diameter Range
2 in-2.49 in
Industry Standard(s)
CSA Certified
Application
Double Eye
Special Features
Split Mesh- Rod Closing
Type
Double Eye
General Literature Asset 2 Display Text
PULP & PAPER SOLUTIONS
Style
Split Mesh, Rod Closing
Description - Invoice
DBL EYE, SUP GRIP, 2.0-2.5"; SS, ROD
Harmonization Code
7326200090
MSDS Flag
No
Sub Class Code
A52A480
Construction
Woven
Series
Standard Duty Series
Carton - SCC-14 Next Lower Level Sub Pack
00783585310305
Lowest Level UOM
Each
Approx Breaking Strength8,950 lb.
Width4.000 in
PerformanceMechanical - Approximate Breaking Strength - 8,950 (39,812);Mechanical - Working Load - 895 (3981.2) Lbs. (N)
Cable Size2.00"-2.49" (5.08-6.32)
StandardCSA Certified
General Literature Asset 1 Display TextPulp & Paper Solutions
General Literature Asset 3 Display TextFOOD & BEVERAGE SOLUTIONS
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number02303009
Material - Mounting HardwareScrew Hook or Beam Clamp
MaterialStainless Steel
Base Unit of MeasureEA
Each - Pack DescriptionEach

Certifications

EU RoHS Indicator
Yes
