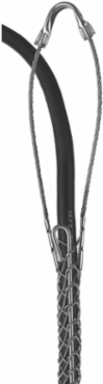

Hubbell Wiring Device-Kellems 02203014 Support Grip 0.63-0.74 Inch Single Eye, Bronze, 790 lb Breaking Strength
- MPN: 02203014
- UPC: 783585303048
- PPN: HBL-02203014
- UNSPSC: 39121719
CAD
$137.40
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Support Grips, Single Eye, Single Weave, Split Mesh, Rod Closing, Tin-Coated Bronze, 0.63-0.74"
Features
- Single eye
- Strand equalizers position wires for equal loading throughout grip length
- Eye assemblies provide eye reinforcement at support hardware
- Split Mesh- Rod Closing
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Cable Diameter Range | 0.63 in-0.74 in |
| Industry Standard(s) | CSA Certified |
| Standards - RoHS Compliance Status | CM |
| Cable Size | .63"-.74" (1.60-1.88) |
| Standard | CSA Certified |
| General Literature Asset 1 Display Text | Education Application Guide |
| General Literature Asset 3 Display Text | Wiring Device Solutions for Strategic Manufacturing Facilities |
| Class Code | A52 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A52A480 |
| Construction | Woven |
| Series | Standard Duty Series |
| BOX SIZE | 12.875x24.625x16.505 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585303048 |
| Case Weight | 45.250 lb. |
| Lowest Level UOM | Each |
| Pallet Length | 48.000 in |
| Pallet Width | 42.000 in |
| Approx Breaking Strength | 790 lb. |
|---|---|
| Width | 2.000 in |
| Performance | Mechanical - Approximate Breaking Strength - 790 (3,514);Mechanical - Working Load - 79 (351.4) Lbs. (N) |
| Application | Single Eye |
| Special Features | Split Mesh- Rod Closing |
| Type | Single Eye |
| General Literature Asset 2 Display Text | Entertainment Product Solution Guide |
| Style | Split Mesh, Rod Closing |
| Description - Invoice | SGL EYE, SUP GRIP, .63-.74"; GALV, ROD |
| Harmonization Code | 7419805050 |
| MSDS Flag | No |
| Material - Mounting Hardware | Screw Hook or Beam Clamp |
| Material | Bronze, Tin Coated |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 45.250 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 300 EA |
| Each - Pack Description | Each |
| Pallet Height | 39.000 in |
| Pallet Weight | 455.000 lb. |
| NAICS Code | 3359323114 |
