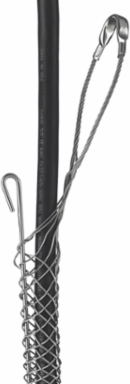

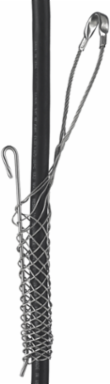

Hubbell Wiring Device-Kellems 02203047 Support Grips Offset Eye Split Mesh 3.00-3.49 Inch Bronze
- MPN: 02203047
- UPC: 783585303291
- PPN: HBL-02203047
- UNSPSC: 39121719
CAD
$418.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Support Grips, Offset Eye, Single Weave, Split Mesh, Rod Closing, Tin-Coated Bronze, 3.00-3.49"
Features
- Offset eye
- Strand equalizers position wires for equal loading throughout grip length
- Eye assemblies provide eye reinforcement at support hardware
- Split Mesh- Rod Closing
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Cable Diameter Range
- 3 in-3.49 in
- Industry Standard(s)
- CSA Certified
- Application
- Offset Eye
- Special Features
- Split Mesh- Rod Closing
- Type
- Offset Eye
- General Literature Asset 2 Display Text
- PULP & PAPER SOLUTIONS
- Style
- Split Mesh, Rod Closing
- Description - Invoice
- OFF EYE, SUP GRIP, 3.0-3.5"; GALV, ROD
- Harmonization Code
- 7419805050
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Hook or Beam Clamp
- Material
- Bronze, Tin Coated
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 17.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Each - Pack Description
- Each
- NAICS Code
- 3359323114
Approx Breaking Strength4,300 lb.
Width9.500 in
PerformanceMechanical - Approximate Breaking Strength - 4,300 (19,126);Mechanical - Working Load - 430 (1912.6) Lbs. (N)
Cable Size3.00"-3.49" (7.62-8.86)
StandardCSA Certified
General Literature Asset 1 Display TextPulp & Paper Solutions
General Literature Asset 3 Display TextFOOD & BEVERAGE SOLUTIONS
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA52A480
ConstructionWoven
SeriesStandard Duty Series
BOX SIZE12.200x32.000x18.100 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585303291
Case Weight40.150 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
