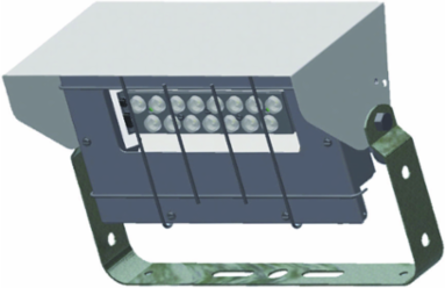

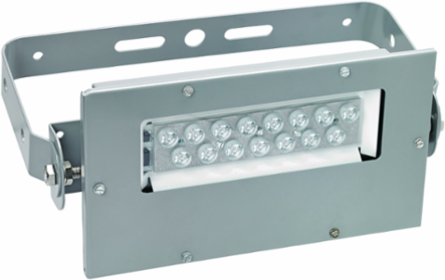

Killark KFLC4030 LED Floodlight 40 Watt 4039 Lumens 120-277 VAC, 5000K, Corrosion Resistant
- MPN: KFLC4030
- UPC: 783936111995
- PPN: HBL-KFLC4030
CAD
$2367.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The KFLC Series compact LED floodlights are designed with a copper-free aluminum housing and painted with a powder epoxy finish for superior corrosion resistance in harsh and hazardous environments. Killark LED floodlights provide a crisp white light that is great for color rendering. The KFLC Series floodlight are suitable for wet locations and high ambient areas.
Features
- Standard supplemental 6KV surge protection
- Optional supplementary surge protection available 20KA/10KV (120-277 VAC), 10KA/10KV (347-480 VAC)
- One 3/4” NPT hub & R-21 3/4” x 1/2” reducer is standard
- Crisp White Light for Excellent Color Rendering – Chromaticity 5000 K (CCT) approx. 70 CRI
- Energy Savings – High lumens per watt
- Long Life – 100,000+ maintenance free hours to 70% initial lumens
- Ambient suitability -40?C to 55?C
- Solderless LED Board Connections – Vibration Resistant
- Instant On – Including after power interruption
- LM80-08 Measurement of lumen maintenance for LED light sources
- LM79-08 Certified “Absolute” Photometry, including Chromaticity Color for Solid State Lighting
- L70 Values - Industry Nomenclature for Hours of use to 70% of Initial Lumens (TM-21+ Cal.)
- The KFLC Series compact LED floodlights are designed with a copper-free aluminum housing and painted with a powder epoxy finish for superior corrosion resistance in harsh and hazardous environments. Killark LED floodlights provide a crisp white light that is great for color rendering. The KFLC Series floodlight are suitable for wet locations and high ambient areas.
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Lumens | 4039 |
| Operating Temperature Celcius Min | -40 °C |
| Optic Type | Glass Lens |
| Weight | 9.5 lb. |
| Application | LED Compact Floods are designed for installations where moisture, dirt, dust, corrosion and vibration may be present, or NEMA 3 and 4X areas where wind, water, snow or high ambients can be expected. They can be used in locations made hazardous by the presence of flammable vapors or gases or combustible dusts as defined by the NEC. |
| Frequency Rating | 50/60 Hz |
| Wattage | 40 W |
| Class Code | D20 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | A |
| Sub Class Code | D20D202 |
| Lumens Per Watt | 510.4 |
| Series | KFLC Series |
| BOX SIZE | (in) |
| NAICS Code | 3351222100 |
| Hazardous Rating(s) | Class I, Division 2, Groups A, B, C, D;Class I, Zone 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
|---|---|
| Operating Temperature Celcius Max | 55 |
| Operating Temperature Range Celcius | -40°C to 55°C |
| Voltage Rating | 120-277 VAC |
| Engineering Drawing 1 Display Text | KFLC Series 2D - Engineering Drawing |
| Finish Type | Powder Epoxy Paint |
| Mounting Type | Trunnion |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | 40W 120-277VAC 50/60HZ LED Compact FLOOD |
| Harmonization Code | 9405426000 |
| MSDS Flag | No |
| Lumen Range | 15,001-25,000 lm |
| Light Source | LED |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936111995 |
