Weidmuller 1492530000 KQIG-M3,5/-1
- MPN: 1492530000
- PPN: WDM-1492530000
CAD
$0.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

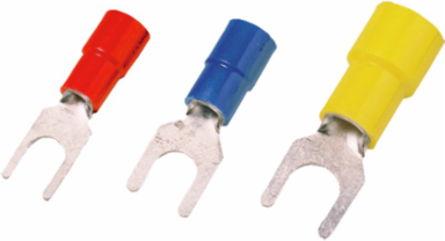

cable lug, terminal end,Insulated cable connector,0.5 mm² - 1 mm²
Documentation & Downloads
Specifications
Connectors
| Conductor cross-section, max. | 1 mm² |
|---|---|
| Connection length (I) | 17 mm |
| Identification colour | red |
| Inside diameter of flange (d2) | 3.7 mm |
| Insulation | Available |
| Outside diameter of shaft (d3) | 6 mm |
| Conductor cross-section, min. | 0.5 mm² |
|---|---|
| Hole | C 3,5 |
| Inside diameter of collar (d4) | 4 mm |
| Inside diameter of shaft (d1) | 1.6 mm |
| Material/plastic | PC |
Classifications
| ETIM 6.0 | EC001059 |
|---|---|
| eClass 9.0 | 27-40-02-92 |
| eClass 10.0 | 27-40-02-92 |
| ETIM 7.0 | EC001059 |
|---|---|
| eClass 9.1 | 27-40-02-12 |
Dimensions And Weights
| Net weight | 0.66 g |
|---|
Approvals
| ROHS | Conform |
|---|
