Weidmuller 1492610000 KQIG-M3,5/-2,5
- MPN: 1492610000
- PPN: WDM-1492610000
CAD
$0.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

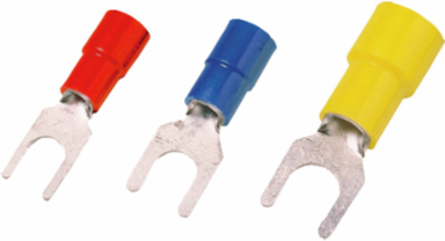

cable lug, terminal end,Insulated cable connector,1.5 mm² - 2.5 mm²
Documentation & Downloads
Specifications
Classifications
- ETIM 6.0
- EC001059
- eClass 9.0
- 27-40-02-92
- eClass 10.0
- 27-40-02-92
ETIM 7.0EC001059
eClass 9.127-40-02-12
Connectors
- Conductor cross-section, max.
- 2.5 mm²
- Connection length (I)
- 17 mm
- Identification colour
- blue
- Inside diameter of flange (d2)
- 3.7 mm
- Insulation
- Available
- Outside diameter of shaft (d3)
- 6 mm
Conductor cross-section, min.1.5 mm²
HoleC 3,5
Inside diameter of collar (d4)4.5 mm
Inside diameter of shaft (d1)2.3 mm
Material/plasticPC
Dimensions And Weights
- Net weight
- 0.779 g
Approvals
- ROHS
- Conform
