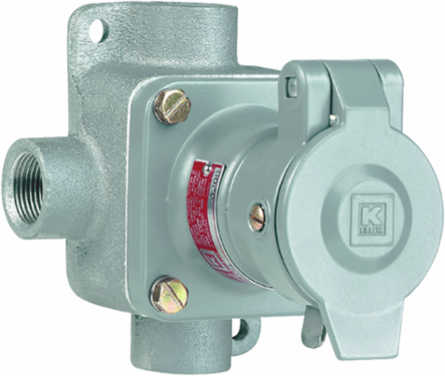

Killark KRJX-220 Aluminum 20 Amp Receptacle 2W 3P Circuit 3/4 Inch Hub, 5.56 x 4 x 5.63 Inch Size
Killark KRJX-220 Aluminum 20 Amp Receptacle 2W 3P Circuit 3/4 Inch Hub, 5.56 x 4 x 5.63 Inch Size
- MPN: KRJX-220
- UPC: 783936391427
- PPN: HBL-KRJX-220
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1603.52/ EA
Description
KRJX Series - Aluminum 20 Amp Receptacle With Enclosure - 2W 3P Circuit- 115/230VAC At 60Hz - Hub Size 3/4 Inch
Features
- Suitable where a connection is required for portable or movable equipment such as tools, motors, hand lights, etc.
- Wire leads for termination
- Factory sealed receptacles
- Copper free aluminum housing
- Straight or angle type back boxes
- Delayed action contacts ensure safe interconnect
- Extra long grounding pin makes contact first and breaks contact last
- Factory sealed receptacles. Copper free aluminum. Delayed action contacts. Extra long grounding pole makes contact first and breaks contact last. Heavy duty construction to withstand rough and constant usage.
Specifications
Specifications
- Country of Origin
- US
- Each - Width
- 4.000 in
- Height
- 5.63 in
- Length
- 5.56 in
- Application
- KR Series receptacles are suitable: in hazardous locations due to the presence of flammable vapors or gases;where a heavy duty plug and receptacle is necessary;where a connection is required for portable or movable equipment such as tools, motors, hand
- NEMA Rating
- 7 (C, D)
- Number of Wires
- 3
- Special Features
- Factory sealed receptacles. Copper free aluminum. Delayed action contacts. Extra long grounding pole makes contact first and breaks contact last. Heavy duty construction to withstand rough and constant usage.
- Width
- 4 in
- Number Of Poles
- 2
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- CL1 20A 2W3P REC/3/4" "X" BOX
- Harmonization Code
- 8536694020
- Lead Time
- 20 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D35D260
- Gross Weight with Packaging
- 2.8
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Series
- KR Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936391427
Dimensions5.56 in x 4 in x 5.63 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB,IIA
Hub Size3/4"
Amperage Rating20 A
ColorGray
Number of Poles2
Size5.56 in x 4 in x 5.63 in
TypePin & Sleeve
Nema Rating7 (C, D)
Number Of Wires3
Class CodeD35
Freight Class Code06168002
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Factory SealedFactory Sealed
Hub PatternFeed-Thru
Receptacle TypeDelayed Action
Base Unit of MeasureEA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
