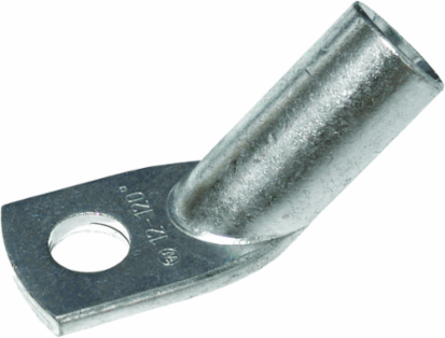

Weidmuller 1496480000 KWN-M20/-150 45
- MPN: 1496480000
- PPN: WDM-1496480000
CAD
$17.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
cable lug, terminal end,150 mm²
Documentation & Downloads
Specifications
Connectors

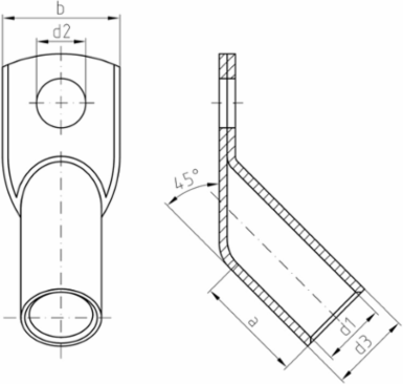

| Conductor cross-section | 150 mm² |
|---|---|
| Hole | M 20 |
| Inside diameter of shaft (d1) | 16.8 mm |
| Outside diameter of shaft (d3) | 21.3 mm |
| Flange width (b) | 35 mm |
|---|---|
| Inside diameter of flange (d2) | 21 mm |
| Insulation | not available |
| Shaft length (a) | 28 mm |
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Weight | 10.12 g |
|---|
| Net weight | 101.2 g |
|---|
Classifications
| ETIM 6.0 | EC001051 |
|---|---|
| eClass 9.0 | 27-40-02-05 |
| eClass 10.0 | 27-40-02-05 |
| ETIM 7.0 | EC001051 |
|---|---|
| eClass 9.1 | 27-40-02-05 |
Technical Data
| Version | Euro series, 45° |
|---|
