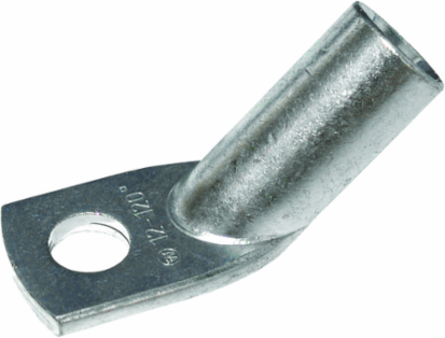

Weidmuller 1495420000 KWN-M20/-240 45
- MPN: 1495420000
- PPN: WDM-1495420000
CAD
$26.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
cable lug, terminal end,240 mm²
Documentation & Downloads
Specifications
Connectors
- Conductor cross-section
- 240 mm²
- Hole
- M 20

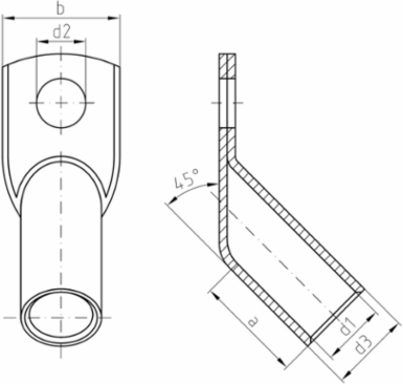

- Inside diameter of shaft (d1)
- 21 mm
- Outside diameter of shaft (d3)
- 26 mm
Flange width (b)38 mm
Inside diameter of flange (d2)21 mm
Insulationnot available
Shaft length (a)34 mm
Approvals
- Approvals
- CULUS
- UL File Number Search
- E354986
ROHSConform
Dimensions And Weights
- Weight
- 17.04 g
Net weight165.6 g
Classifications
- ETIM 6.0
- EC001051
- eClass 9.0
- 27-40-02-05
- eClass 10.0
- 27-40-02-05
ETIM 7.0EC001051
eClass 9.127-40-02-05
Technical Data
- Version
- Euro series, 45°
