Weidmuller 1157820000 KT 14
- MPN: 1157820000
- PPN: WDM-1157820000
CAD
$80.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

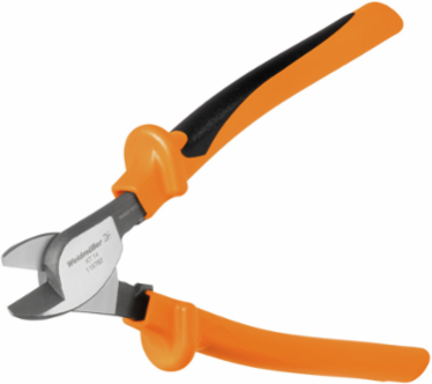

Cutting tools ,Cutting tool for one-hand operation
Documentation & Downloads
Specifications

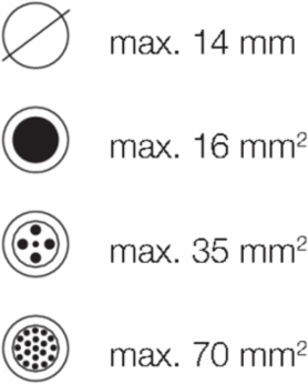

Cutting Tools
- Copper cable - flexible, max.
- 70 mm²
- Copper cable - solid, max.
- 16 mm²
- Copper cable - stranded, max.
- 35 mm²
- Copper cable, max. diameter
- 14 mm
- Single-core aluminium cable, max.(mm²)
- 35 mm²
- Stranded aluminium cable, max. (AWG)
- 2/0 AWG
Copper cable - flexible, max. (AWG)2/0 AWG
Copper cable - solid, max. (AWG)6 AWG
Copper cable - stranded, max. (AWG)2 AWG
Data / telephone / control cable, max. Ø14 mm
Stranded aluminium cable, max (mm²)70 mm²
Stranded aluminium cable, max. diameter14 mm
Approvals
- Approvals
- EAC
Dimensions And Weights
- Width
- 225 mm
- Height
- 63.5 mm
- Depth
- 30 mm
- Weight
- 320 g
Width (inches)8.858 inch
Height (inches)2.5 inch
Depth (inches)1.181 inch
Net weight324.78 g
Classifications
- ETIM 6.0
- EC000142
- eClass 9.0
- 21-04-47-01
- eClass 10.0
- 21-04-47-01
ETIM 7.0EC000142
eClass 9.121-04-37-06
UNSPSC31-16-31-02
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Technical Data
- Version
- One-hand mechanical
