Weidmuller 9002650000 KT 8
- MPN: 9002650000
- PPN: WDM-9002650000
CAD
$72.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

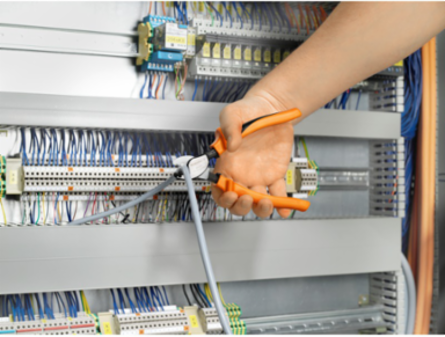

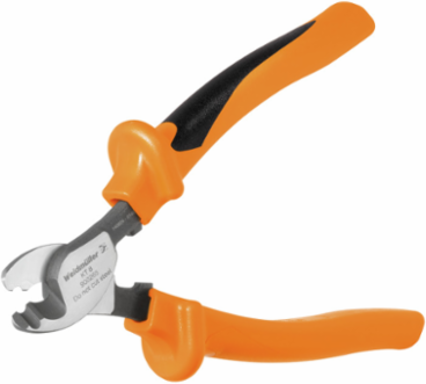

Cutting tools ,Cutting tool for one-hand operation
Documentation & Downloads
Specifications
Cutting Tools

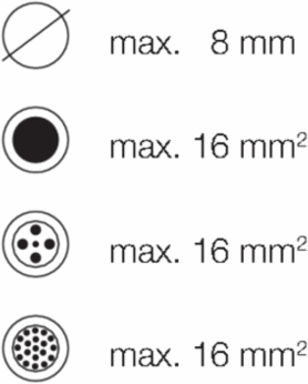

| Copper cable - flexible, max. | 16 mm² |
|---|---|
| Copper cable - solid, max. | 16 mm² |
| Copper cable - stranded, max. | 16 mm² |
| Copper cable, max. diameter | 8 mm |
| Single-core aluminium cable, max.(mm²) | 16 mm² |
| Stranded aluminium cable, max. (AWG) | 6 AWG |
| Copper cable - flexible, max. (AWG) | 6 AWG |
|---|---|
| Copper cable - solid, max. (AWG) | 6 AWG |
| Copper cable - stranded, max. (AWG) | 6 AWG |
| Data / telephone / control cable, max. Ø | 8 mm |
| Stranded aluminium cable, max (mm²) | 16 mm² |
| Stranded aluminium cable, max. diameter | 8 mm |
Approvals
| Approvals | EAC |
|---|
Dimensions And Weights
| Width | 185 mm |
|---|---|
| Height | 65.5 mm |
| Depth | 30 mm |
| Weight | 180 g |
| Width (inches) | 7.283 inch |
|---|---|
| Height (inches) | 2.579 inch |
| Depth (inches) | 1.181 inch |
| Net weight | 220 g |
Classifications
| ETIM 6.0 | EC000142 |
|---|---|
| eClass 9.0 | 21-04-47-01 |
| eClass 10.0 | 21-04-47-01 |
| ETIM 7.0 | EC000142 |
|---|---|
| eClass 9.1 | 21-04-37-06 |
| UNSPSC | 31-16-31-02 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Technical Data
| Version | One-hand mechanical |
|---|
