Weidmuller 1496240000 KWN-M10/-35 45
- MPN: 1496240000
- PPN: WDM-1496240000
CAD
$6.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

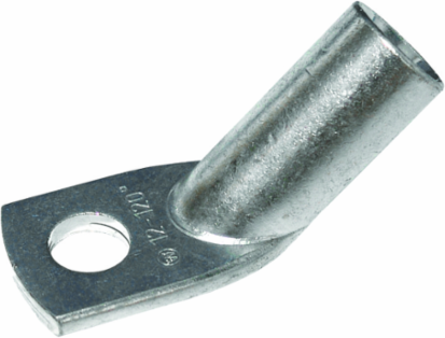

cable lug, terminal end,35 mm²
Documentation & Downloads
Specifications
Connectors
- Conductor cross-section
- 35 mm²
- Hole
- M10

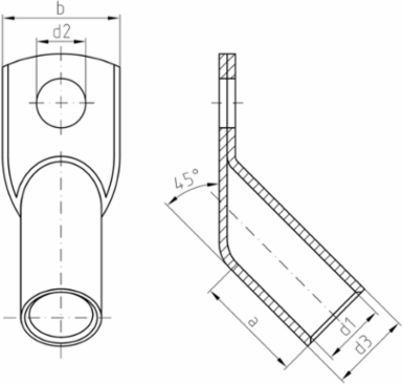

- Inside diameter of shaft (d1)
- 8.5 mm
- Outside diameter of shaft (d3)
- 12 mm
Flange width (b)20 mm
Inside diameter of flange (d2)10.5 mm
Insulationnot available
Shaft length (a)16 mm
Approvals
- Approvals
- CULUS
- UL File Number Search
- E354986
ROHSConform
Dimensions And Weights
- Weight
- 2.34 g
Net weight23.4 g
Classifications
- ETIM 6.0
- EC001051
- eClass 9.0
- 27-40-02-05
- eClass 10.0
- 27-40-02-05
ETIM 7.0EC001051
eClass 9.127-40-02-05
Technical Data
- Version
- Euro series, 45°
