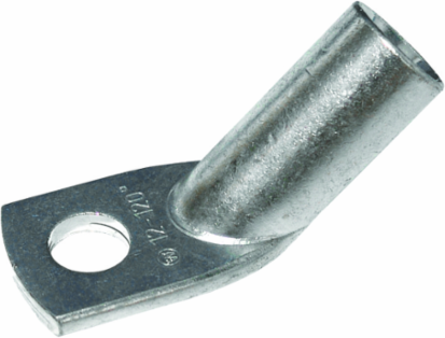

Weidmuller 1496220000 KWN-M6/-35 45
- MPN: 1496220000
- PPN: WDM-1496220000
CAD
$5.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
cable lug, terminal end,35 mm²
Documentation & Downloads
Specifications
Connectors
- Conductor cross-section
- 35 mm²
- Hole
- M 6

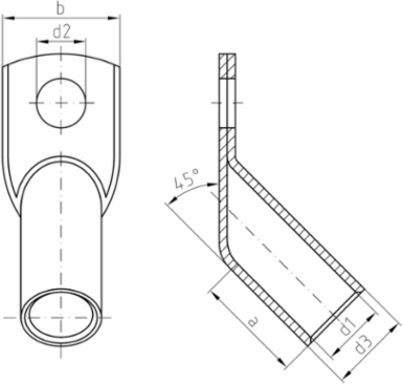

- Inside diameter of shaft (d1)
- 8.5 mm
- Outside diameter of shaft (d3)
- 12 mm
Flange width (b)17 mm
Inside diameter of flange (d2)6.4 mm
Insulationnot available
Shaft length (a)16 mm
Approvals
- Approvals
- CULUS
- UL File Number Search
- E354986
ROHSConform
Dimensions And Weights
- Weight
- 2.17 g
Net weight21.7 g
Classifications
- ETIM 6.0
- EC001051
- eClass 9.0
- 27-40-02-05
- eClass 10.0
- 27-40-02-05
ETIM 7.0EC001051
eClass 9.127-40-02-05
Technical Data
- Version
- Euro series, 45°
