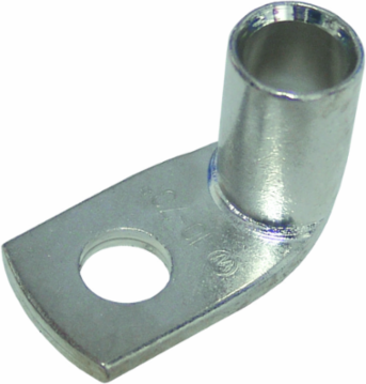

Weidmuller 1495310000 KWN-M5/-4 90
- MPN: 1495310000
- PPN: WDM-1495310000
CAD
$1.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
cable lug, terminal end,4 mm²
Documentation & Downloads
Specifications
Connectors

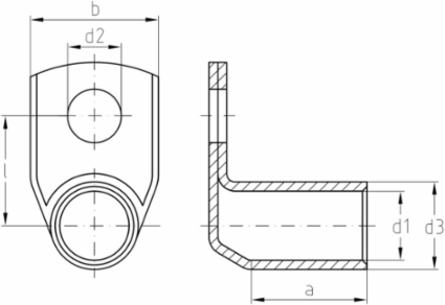

| Conductor cross-section | 4 mm² |
|---|---|
| Flange width (b) | 10 mm |
| Inside diameter of flange (d2) | 5.3 mm |
| Insulation | not available |
| Shaft length (a) | 7 mm |
| Connection length (I) | 10.5 mm |
|---|---|
| Hole | M 5 |
| Inside diameter of shaft (d1) | 3 mm |
| Outside diameter of shaft (d3) | 5 mm |
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Weight | 0.24 g |
|---|
| Net weight | 2.4 g |
|---|
Classifications
| ETIM 6.0 | EC001051 |
|---|---|
| eClass 9.0 | 27-40-02-05 |
| eClass 10.0 | 27-40-02-05 |
| ETIM 7.0 | EC001051 |
|---|---|
| eClass 9.1 | 27-40-02-05 |
Technical Data
| Version | Euro series 90° |
|---|
