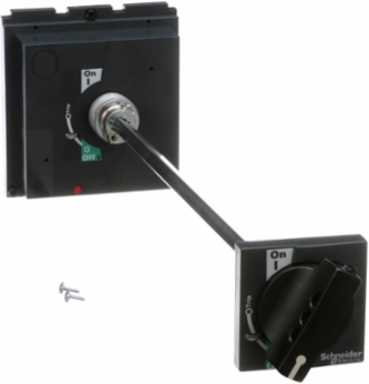

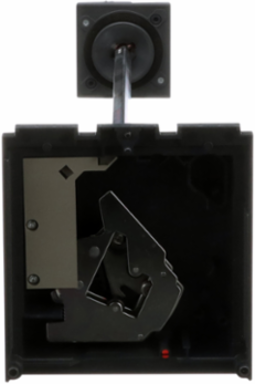

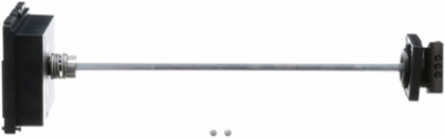

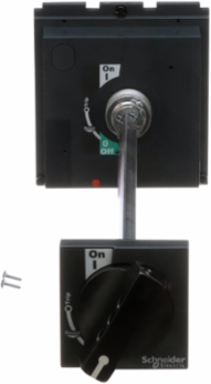

Square D S32598 PowerPact L Rotary Handle Circuit Breaker Accessory, Black, UL/CSA Certified
- MPN: S32598
- UPC: 785901808640
- PPN: SCH-S32598
CAD
$1174.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
S32598 is a PowerPacT L-Frame Circuit Breaker Direct Mounted rotary handle - Black. This is a PowerPacT accessory for L-Frame & breakers. This accessory has CSA & UL Standards. PowerPacT L-frame circuit breakers can be used with a variety of internal and external accessories to increase application versatility and meet the demands of modern electrical distribution systems. Circuit breaker internal accessories are available either factory installed or field installable. They can be installed in accessory compartments behind the circuit breaker accessory cover. This accessory Certified to UL,& CSA Standards. The PowerPacT Advantage. Proven Performance, Industry-leading circuit breaker innovation and protection for heavy-duty commercial and industrial applications. Smart, Integrated metering options provide a cost-effective solution to reduce energy consumption, optimize energy costs, and improve energy availability for your facilities.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
Physical Attributes
| Handle Color | black |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | UL, CSA |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 2 kg CO2 eq., 2.178416389835131 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 5 kg CO2 eq., 5.409639348446468 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Traceability | No |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Mounting Support | door |
| Product Or Component Type | rotary handle |
| Returnability | Yes |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 8 kg CO2 eq. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Rotary Handle for MCCB is to allow the ON, OFF, TRIP, RESET operation of MCCB from the front face of the switchboard for 20 years.& 10& 10IP Class = IP55 (Rotary Handle) |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; CN |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Recyclability Potential In % | 65 |
| Package Weight(Lbs) | 979.76 g |
| Warranty (In Months) | 18 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase [A4] | 0.1650487603773472, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.3895605239197103, 0.4 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2025-11-13 |
| Stocking Flag | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | PowerPact L |
| Software Version | v5.9.4 |
| Tightening Torque | 1.5-1.5 N.m |
| Handle Color | black |
| Pep Verification Date | 2023-09-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908120 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Carbon Footprint | 8.142665022578656 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Verification Date | 2023-09-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | rotary handle |
|---|
| Range Of Product | PowerPact L |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
