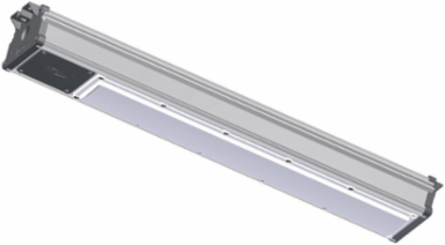

Killark LAL4530D LED Linear Light 45W 5054 Lumens 120-277VAC, Polycarbonate Lens
- MPN: LAL4530D
- UPC: 783936123325
- PPN: HBL-LAL4530D
CAD
$1628.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
LAL Series LED Linear, Hazardous Rated 45 Watt, 120-277 VAC, 5000K, 5054 Lumens
Features
- Standard supplemental 6KV surge protection
- Optional supplementary surge protection available 20KA/10KV (120-277 VAC), 10KA/10KV (347-480 VAC)
- LALxE models have “built-in” battery backup for 90 minute emergency exit
- Shallow design minimizes profile in work areas with low ceiling heights
- Diffuse Lens Standard to minimize glare
- Clear Lens available
- Polycarbonate Single Lens 18W to 60W, Double Lens model 34W to 120W
- Slot Back Design allows multiple mounting access points across length – slots can also be used with 5/16” or 8mm bolts & nuts
- 3 housing slots, 1 center back and 2 at 45°
- Variety of mounting options including swivel brackets, wall, ceiling brackets, or beam clamps
- End Caps each have 2 mounting feet built-in plus a safety strap attachment point
- Standard unit End Caps each have a single ¾” NPT hub
- Fixture is furnished with one ¾” close-up plug and two ¾” to ½” reducers – provides out of the box ½” dead-end to ¾” feed-through flexibility
- Metric openings are available
- Standard LALs have one wiring Access Plate for easy access to driver leads
- Many Midpower LEDs blend light to simulate fluorescent tubes
- Crisp White Light for Excellent Color Rendering – Chromaticity 5000K (CCT) approx. 70 CRI
- Energy Savings – High lumens per watt
- LED Array Life – to 212,000 maintenance free hours to 70% initial lumens
- Ambient suitability -40°C to 65°C (see tables). 0°C to 50°C Ambient suitability for Emergency models
- Instant On – Including after power interruption
- World Voltage 120 - 277VAC 50/60Hz
- Solderless LED Board Connections – Vibration Resistant
- LM80-08 Measurement of lumen maintenance for LED light sources
- LM79-08 Certified “Absolute” Photometry, including Chromaticity Color for Solid State Lighting
- L70 Values – Industry Nomenclature for Hours of use to 70% of initial Lumens – TM-21 & Calculated
- LAL Series Linear LED fixtures are made of a copper-free aluminum body and use energy efficient LED's that are suitable for use in harsh and hazardous environments. The LAL Series hold Quad Certification for installation all over the world having NEC, CEC, IECeX, and ATEX certifications.
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Division 2, Groups A, B, C, D;Class I, Zone 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2;Zone 2;Zone 21
- IP Rating
- IP66
- Operating Temperature Celcius Max
- 40
- Operating Temperature Range Celcius
- -40°C to 40°C
- Voltage Rating
- 120-277 VAC
- Application
- Linear LED Luminaires are designed for installations where moisture, dirt, dust, corrosion and vibration may be present, and NEMA 3, 4X, IP66 areas where wind, water, snow or high ambients can be expected. They can be used in locations made hazardous by the presence of flammable vapors or gases or combustible dusts as defined by the NEC/CEC/IEC.
- Frequency Rating
- 50/60 Hz
- Wattage
- 45 W
- Class Code
- D20
- Freight Class Code
- 10970009
- Image Actual Or Representative
- R
- Sub Class Code
- D20D202
- Lumens Per Watt
- 28.9
- Material
- Aluminum
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936123325
Width6.000 in
Hub Size3/4"
Lumens5054
Operating Temperature Celcius Min-40 °C
Optic TypePolycarbonate Lens - Diffused
Weight17.9 lb.
Finish TypeNatural
Mounting TypePendant or Surface
ARRA CompliantContact Manufacturer
Description - InvoiceLAL45W LED 120-277VAC AL 1LENS DIF 1AP
Harmonization Code9405426000
MSDS FlagNo
Lumen Range5,001-10,000 lm
Light SourceLED
SeriesLAL Series
BOX SIZE(in)
NAICS Code3351222100
Certifications
- EU RoHS Indicator
- Contact Manufacturer
