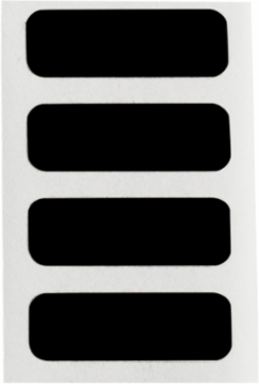

Brady LZR-46-730-10 Laser Markable Polyimide Label, 0.25" H x 0.75" W, Black
Brady LZR-46-730-10 Laser Markable Polyimide Label, 0.25" H x 0.75" W, Black
- MPN: LZR-46-730-10
- UPC: 754473596583
- PPN: BRD-LZR-46-730-10
- UNSPSC: 55121612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1235.00/ EA
Description
The B-730 material is a polyimide that is designed to be permanently marked using IR lasers.
Features

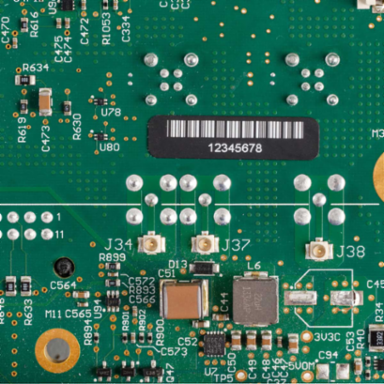

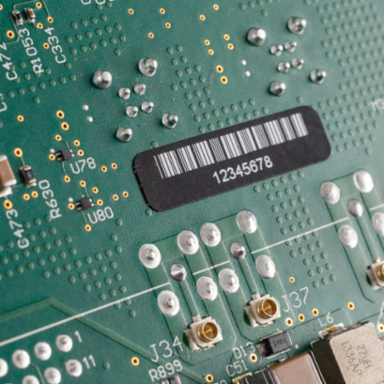

- Ideal for use in circuit boards and electronic components
- Resists repeated harsh washdown cycles
- Resists high temperatures that occur during wave soldering
- Compatible with most IR laser marking systems
- Service temperature of -94 to 212° F (-70 to 100° C)
Specifications
Specifications
- Applications
- Circuit Board Labeling
- Color
- Black
- Finish
- Matte
- Label/Media Format

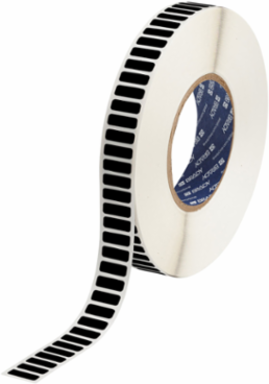

- Labels on a Roll
- Print Technology
- Laser
- Quantity per Roll
- 10000
- Total Quantity
- 10000
- Adhesive Type
- Permanent Acrylic
- Label Properties
- Aggressive Adhesive Labels; Chemical Resistant; Harsh Environment Labels; Heat Resistant Labels
- Dimensions
- 0.25 in H x 0.75 in W
- Dimensions 2
- 0.25 in H x 0.75 in W
- Height (mm/cm/m)
- 6.4 mm
- Maximum Service Temperature °C
- 300 °C
- Minimum Service Temperature °C
- -70 °C
- Sign Size-General
- 0.25 in x 0.75 in
- Thickness (mm/cm/m)
- 0.114 mm
- Width (in/ft/yd)
- 0.75 in
Brand NameBrady®
Corner TypeRounded Corners
For Use with PrinterIR Laser Marking Systems
Primary Noun, Basic FunctionLabel
Printer and Label ApplicationsCircuit Board
Quantity per Row1
Trade NameUltraTemp®
Brady Material NumberB-730
SAP B-NumberB-730
Dimensions (Metric)6.4 mm H
Height (in/ft/yd)0.25 in
Label/Tape Size (in/ft/yd)0.25 in H x 0.75 in W
Maximum Service Temperature °F572 °F
Minimum Service Temperature °F-94 °F
Thickness (in/ft/yd)0.0045 in
Vertical Repeat0.35 in
Width (mm/cm/m)19.1 mm
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
