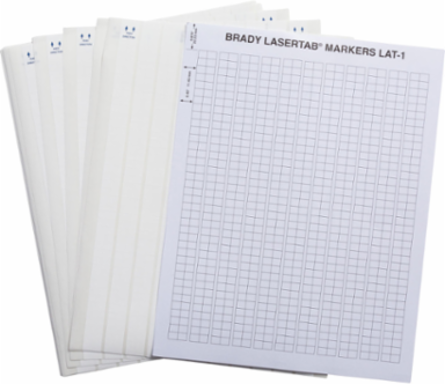

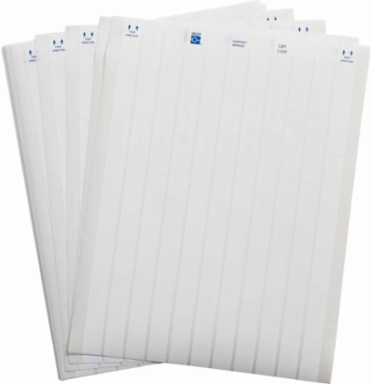

Brady LAT-1-747-10 Laser Printable Polyester Sign and Label Blanks, 0.25" H x 0.3" W, Pack of 12 Sheets
- MPN: LAT-1-747-10
- UPC: 662820297000
- PPN: BRD-LAT-1-747-10
- UNSPSC: 55121612
CAD
$414.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Laser printable Permanent Polyester (B-747) is recommended for alphanumeric and barcode applications and works well on the topside of most circuit boards and IC's.
Features
- Polyester film with an acrylic pressure sensitive adhesive and a printable coating formulated specially for laser printers and toners
- High resolution, good solvent and smudge resistance, moderate to high temperature performance
- Service temperature of -40°F to 267°F (-40°C to 130°C)
Documentation & Downloads
Specifications
Key Specifications
| Applications | Circuit Board Labeling; General Identification |
|---|---|
| Brand Name | Brady® |
| Compatible Surface Types | High Surface Energy |
| Enables Industry Compliance | ASTM D 1000; ASTM D 2979; ASTM G 155; CSA Approved; UL Recognized |
| For Use with Printer | Laser Printers |
| Primary Noun, Basic Function | Label |
| Printer and Label Applications | Circuit Board; General Identification; Rating & Name Plates |
| Quantity per Card or Sheet | 836 |
| Shape | Rectangle |
| Total Quantity | 10032 |
| Adhesive Type | Permanent Acrylic |
| Brady Material Number | B-747 |
| Material | Polyester |
| Resistance Properties | Chemical-Resistant; High Temperature-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant |
| Dimensions | 0.25 in H x 0.3 in W |
| Dimensions 2 | 0.25 in H x 0.3 in W |
| Height (mm/cm/m) | 6.35 mm |
| Label/Tape Size (in/ft/yd) | 0.25 in H x 0.3 in W |
| Maximum Service Temperature °C | 130 °C |
| Minimum Service Temperature °C | -40 °C |
| Printable Area Dimensions (Metric) | 6.35 mm H x 7.62 mm W |
| Printable Area Width (mm/cm/m) | 7.62 mm |
| Sheet Height (mm/cm/m) | 279.4 mm |
| Sheet Width (in/ft/yd) | 8.5 in |
| Sign Size-General | 0.25 in x 0.3 in |
| Thickness (in/ft/yd) | 0.0037 in |
| Top Margin (mm) | 22.23 mm |
| Width (mm/cm/m) | 7.62 mm |
| Board Application | Through Hole - Top |
|---|---|
| Color | White |
| Diagram | Icon 63 (LT1) |
| Finish | Matte |
| Industry | Aerospace; Automotive; Electronics; Manufacturing |
| Print Technology | Laser Printing |
| Printer Compatibility | Laser |
| Quantity per Row | 22 |
| Total Qty per Pack | 10032 Label(s) / Pack |
| Trade Name | LaserTab® |
| After Process | Yes, this material will work with this application |
| Label Properties | Permanent Adhesive Labels |
| Material Properties | Laser Toner-receptive |
| SAP B-Number | B-747 |
| Dimensions (Metric) | 7.62 mm W x 6.35 mm H |
| Height (in/ft/yd) | 0.25 in |
| Horizontal Repeat (mm) | 17.78 mm |
| Left Margin (mm) | 11.43 mm |
| Maximum Service Temperature °F | 266 °F |
| Minimum Service Temperature °F | -40 °F |
| Printable Area Height (mm/cm/m) | 6.35 mm |
| Sheet Height (in/ft/yd) | 11 in |
| Sheet Size | 215.90 mm x 279.40 mm |
| Sheet Width (mm/cm/m) | 215.9 mm |
| Size - Width (mm) | 7.62 mm |
| Thickness (mm/cm/m) | 0.094 mm |
| Width (in/ft/yd) | 0.3 in |
Regulatory Information
| Contains CA PROP 65 Substance | Yes Contains-Label not req. |
|---|---|
| Contains Heavy Metal(s) | No - Does not contain |
| EU RoHS Compliance | Pass 2011/65/EU(Pass 2015/863) |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
| Contains CA PROP 65 Substance | No |
|---|---|
| DOT Regulated Product | No = not regulated by DOT |
| EU RoHS Compliant | Yes |
