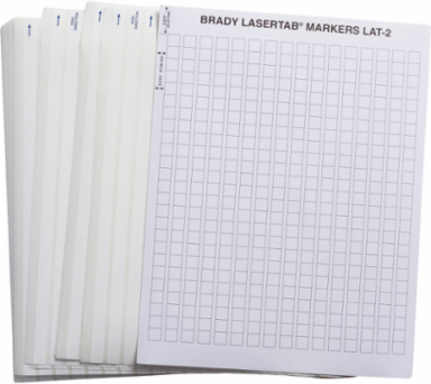

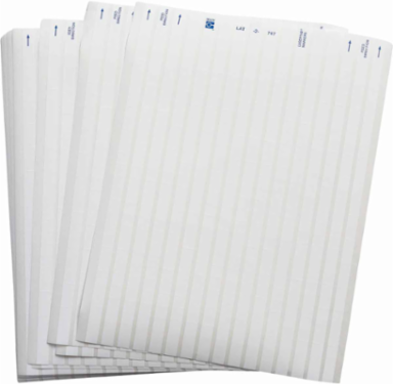

Brady LAT-2-747-10 Laser Printable Polyester Sign and Label Blanks, 0.375" H x 0.375" W, Pack of 25 Sheets
- MPN: LAT-2-747-10
- UPC: 662820297031
- PPN: BRD-LAT-2-747-10
- UNSPSC: 55121612
CAD
$366.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Laser printable Permanent Polyester (B-747) is recommended for alphanumeric and barcode applications and works well on the topside of most circuit boards and IC's.
Features
- Polyester film with an acrylic pressure sensitive adhesive and a printable coating formulated specially for laser printers and toners
- High resolution, good solvent and smudge resistance, moderate to high temperature performance
- Service temperature of -40°F to 267°F (-40°C to 130°C)
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Circuit Board Labeling; General Identification
- Brand Name
- Brady®
- Compatible Surface Types
- High Surface Energy
- Enables Industry Compliance
- ASTM D 1000; ASTM D 2979; ASTM G 155; CSA Approved; UL Recognized
- For Use with Printer
- Laser Printers
- Industry
- Aerospace; Automotive; Electronics; Manufacturing
- Print Technology
- Laser Printing
- Printer Compatibility
- Laser
- Quantity per Row
- 16
- Total Qty per Pack
- 10000 Label(s) / Pack
- Trade Name
- LaserTab®
- After Process
- Yes, this material will work with this application
- Label Properties
- Permanent Adhesive Labels
- Material Properties
- Laser Toner-receptive
- SAP B-Number
- B-747
- Dimensions (Metric)
- 9.53 mm W x 9.53 mm H
- Height (in/ft/yd)
- 0.375 in
- Horizontal Repeat (mm)
- 12.70 mm
- Left Margin (mm)
- 7.95 mm
- Maximum Service Temperature °F
- 266 °F
- Minimum Service Temperature °F
- -40 °F
- Printable Area Height (mm/cm/m)
- 9.53 mm
- Sheet Height (in/ft/yd)
- 11 in
- Sheet Size
- 215.90 mm x 279.40 mm
- Sheet Width (mm/cm/m)
- 215.9 mm
- Size - Width (mm)
- 9.53 mm
- Thickness (mm/cm/m)
- 0.094 mm
- Width (in/ft/yd)
- 0.375 in
Board ApplicationThrough Hole - Top
ColorWhite
DiagramIcon 64 (LT2)
FinishMatte
IncludesPack of 25 sheets each 400 labels
Primary Noun, Basic FunctionLabel
Printer and Label ApplicationsCircuit Board; General Identification; Rating & Name Plates
Quantity per Card or Sheet400
ShapeSquare
Total Quantity10000
Adhesive TypePermanent Acrylic
Brady Material NumberB-747
MaterialPolyester
Resistance PropertiesChemical-Resistant; High Temperature-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant
Dimensions0.375 in H x 0.375 in W
Dimensions 20.375 in H x 0.375 in W
Height (mm/cm/m)9.53 mm
Label/Tape Size (in/ft/yd)0.375 in H x 0.375 in W
Maximum Service Temperature °C130 °C
Minimum Service Temperature °C-40 °C
Printable Area Dimensions (Metric)9.53 mm H x 9.53 mm W
Printable Area Width (mm/cm/m)9.53 mm
Sheet Height (mm/cm/m)279.4 mm
Sheet Width (in/ft/yd)8.5 in
Sign Size-General0.375 in x 0.375 in
Thickness (in/ft/yd)0.0037 in
Top Margin (mm)22.23 mm
Width (mm/cm/m)9.53 mm
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- Unavailable; No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
