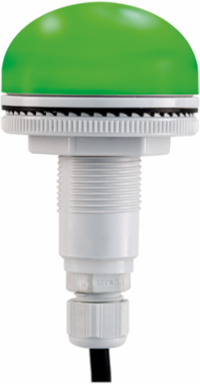

Federal Signal PM22L-012-024G LED, 22mm, 12-24VAC/DC, M12 Cable, Green
- MPN: PM22L-012-024G
- UPC: 782979252016
- PPN: FDS-PM22L-012-024G
- UNSPSC: 39111706
CAD
$213.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Model PM22L is a multifunctional, panel mount LED that offers seven flash patterns, controllable via independent electric contacts. It is available in 12-24 Vac/dc and two electrical connection options: M12 Cable Gland with 12-inch (300 mm) leads or M12 4-Pin Quick Connect (-Q).The PM22 Series is panel mounted through a 0.87-inch (22 mm) hole and secured with the provided locking ring. It offers a self-extinguishing polycarbonate body that protects against vibrations, dust, and other atmospheric elements.
Features
- Available in 12-24 Vac/dc
- Seven flash patterns: steady, slow flashing, fast flashing, double flash, triple flash, strobe, and random
- 360-degree light-diffusing design
- Choice of M12 cable gland or M12 4-pin quick connect (-Q models) electrical connections
- 50,000-hour LED
- Type 4X, IP66 enclosure
- IP69K compliant
- CE and UKCA compliant
- UL and cUL Listed
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Weight | 0.14 lbs |
| Certification Listing | CE, UL, cUL |
| Diameter | 1.97 in (50.038 mm) |
| Flashes Per Minute | 150 (+/- 10) Flash Mode |
| Lens Color | Green |
| Operating Current Amps | 0.04 @ 12VDC/0.03 @ 24VDC/0.07 @ 12VAC/0.06 @ 24VAC |
| Operating Voltage | 12-24 Vac/dc |
| Visual Signals Lens Color | Green |
| Enclosure Rating | IP66, IP69K, Type 4X |
| Product Life Cycle Status | Completed |
| Height | 3.41 in |
|---|---|
| Body Color | Gray |
| Harness Connection Type | Cable Gland |
| Flash Pattern Type | Steady/Flashing/Strobe/Random |
| Availability | In Stock - Ships in 2 Bus Days |
| Mount Type | Panel |
| Operating Temp. | -22˚ to +122˚F (-30˚ to +50˚C) |
| Visual Signals Connection | Cable Gland |
| Environmental Rating | Ordinary Location |
| Lead Time | In Stock - Ships in 2 Bus Days |
