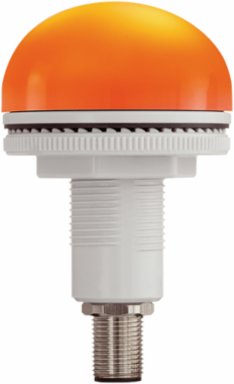

Federal Signal PM22L-012-024A-Q LED, 22mm, 12-24VAC/DC, M12 Quick Connect, Amber
- MPN: PM22L-012-024A-Q
- UPC: 782979252030
- PPN: FDS-PM22L-012-024A-Q
- UNSPSC: 39111706
CAD
$234.84
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Model PM22L is a multifunctional, panel mount LED that offers seven flash patterns, controllable via independent electric contacts. It is available in 12-24 Vac/dc and two electrical connection options: M12 Cable Gland with 12-inch (300 mm) leads or M12 4-Pin Quick Connect (-Q).The PM22 Series is panel mounted through a 0.87-inch (22 mm) hole and secured with the provided locking ring. It offers a self-extinguishing polycarbonate body that protects against vibrations, dust, and other atmospheric elements.
Features
- Available in 12-24 Vac/dc
- Seven flash patterns: steady, slow flashing, fast flashing, double flash, triple flash, strobe, and random
- 360-degree light-diffusing design
- Choice of M12 cable gland or M12 4-pin quick connect (-Q models) electrical connections
- 50,000-hour LED
- Type 4X, IP66 enclosure
- IP69K compliant
- CE and UKCA compliant
- UL and cUL Listed
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Weight
- 0.14 lbs
- Certification Listing
- CE, UL, cUL
- Diameter
- 1.97 in (50.038 mm)
- Flashes Per Minute
- 150 (+/- 10) Flash Mode
- Lens Color
- Amber
- Operating Current Amps
- 0.04 @ 12VDC/0.03 @ 24VDC/0.07 @ 12VAC/0.06 @ 24VAC
- Operating Voltage
- 12-24 Vac/dc
- Visual Signals Lens Color
- Amber
- Enclosure Rating
- IP66, IP69K, Type 4X
- Product Life Cycle Status
- Completed
Height3.41 in
Body ColorGray
Harness Connection TypeQuick Connect
Flash Pattern TypeSteady/Flashing/Strobe/Random
AvailabilityAvailable in 4-6 Weeks
Mount TypePanel
Operating Temp.-22˚ to +122˚F (-30˚ to +50˚C)
Visual Signals ConnectionQuick Connect
Environmental RatingOrdinary Location
Lead TimeAvailable in 4-6 Weeks
