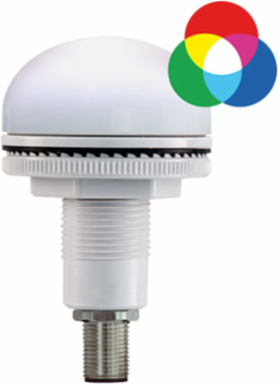

Federal Signal PM22L-024RGB-Q LED, 22mm, 12-24VAC/DC, M12 Quick Connect, Multicolor
- MPN: PM22L-024RGB-Q
- UPC: 782979252092
- PPN: FDS-PM22L-024RGB-Q
- UNSPSC: 39111706
CAD
$268.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Model PM22C RGB is a steady, multicolor panel mount LED and piezoelectric sounder combination. The model offers seven color options combined with a continuous tone within the same unit.Model PM22C RGB is available in 24 Vdc and two electrical connection options: M12 Cable Gland with 12-inch (300 mm) leads or M12 4-Pin Quick Connect (-Q). It is panel mounted through a 0.87-inch (22 mm) hole and secured with the provided locking ring.The PM22 Series offers a self-extinguishing polycarbonate body that protects against vibrations, dust, and other atmospheric elements.
Features
- Available in 24 Vdc
- Multicolor LED produces Blue, Clear, Cyan, Green, Magenta, Red and Yellow
- Steady light effect
- Choice of M12 cable gland or M12 4-pin quick connect (-Q models) electrical connections
- 50,000-hour LED
- Opaque, polycarbonate lens
- Type 4X, IP66 enclosure
- IP69K compliant
- CE and UKCA compliant
- UL and cUL Listed
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Weight | 0.09 lbs |
| Certification Listing | CE, UL, cUL |
| Diameter | 1.97 in (50.038 mm) |
| Flashes Per Minute | Steady |
| Lens Color | Clear |
| Mount Type | Panel |
| Operating Temp. | -22˚ to +122˚F (-30˚ to +50˚C) |
| Visual Signals Connection | Quick Connect |
| Enclosure Rating | IP66, IP69K, Type 4X |
| Product Life Cycle Status | Completed |
| Height | 3.41 in |
|---|---|
| Body Color | Gray |
| Harness Connection Type | Quick Connect |
| Flash Pattern Type | Steady |
| Availability | In Stock - Ships in 2 Bus Days |
| Lens Style | Opaque |
| Operating Current Amps | 0.07 |
| Operating Voltage | 24 Vdc |
| Environmental Rating | Ordinary Location |
| Lead Time | In Stock - Ships in 2 Bus Days |
