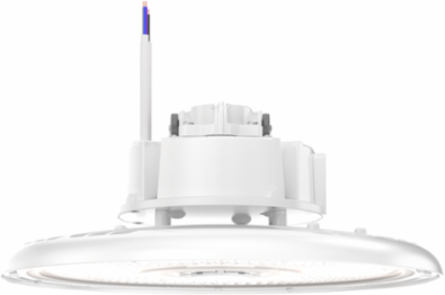

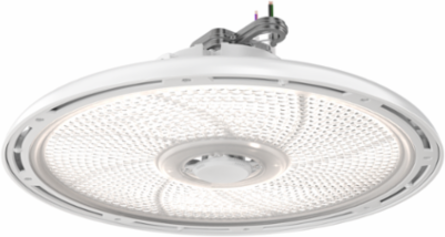

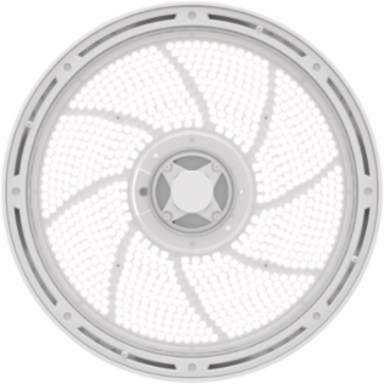

Acuity Brands REBL ALO13 XVOLT SWW3 80CRI DWH M2 LED Round High Bay, Switchable Lumens- 12000LM, 15000LM and 18000LM, 277V-480V, Switchable CCT- 3500K, 4000K and 5000K, 80 color rendering index, White
Acuity Brands REBL ALO13 XVOLT SWW3 80CRI DWH M2 LED Round High Bay, Switchable Lumens- 12000LM, 15000LM and 18000LM, 277V-480V, Switchable CCT- 3500K, 4000K and 5000K, 80 color rendering index, White
- MPN: REBL ALO13 XVOLT SWW3 80CRI DWH M2
- UPC: 197590119523
- PPN: LTH-REBL ALO13 XVOLT SWW3 80CRI DWH M2
- UNSPSC: 39112102
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$270.49/ EA
Description
The REBL LED High Bay by Lithonia Lighting features patent pending micro-prism optics that deliver uniform and comfortable illumination across the entire space. Packaged in a sleek, yet rugged diecast housing, the REBL's unique design redefines the round high bay by combining aesthetics, optical control, and UGR performance without wasting energy. REBL is Performance Simplified.
Features
- The REBL LED High Bay by Lithonia Lighting features patent pending micro-prism optics that deliver uniform and comfortable illumination across the entire space. Packaged in a sleek, yet rugged diecast housing, the REBL's unique design redefines the round high bay by combining aesthetics, optical control, and UGR performance without wasting energy. REBL is Performance Simplified.
- TECHNOLOGY: 12,000/15,000/18,000 Adjustable Lumen Output (ALO) and 3500K/4000K/5000K Switchable White (SWW) features allow for this high bay to offer 9 potential configurations within one fixture, using two switches
- ENERGY SAVINGS: High-efficiency LEDs provide up to 187 LPW
- DIMMING: 0-10 volts driver for dimming down to 10 percent
- RATINGS: UL/C-UL listed to US and Canadian safety standards, Wet location listed, IP66, NEMA 4X, and NSF Splash Zone 2 rated
- VOLTAGE: XVOLT for 277-480 volts
- HOURS OF LIFE: Greater than 70 percent LED lumen maintenance at 100,000 hours (L70>100,000)

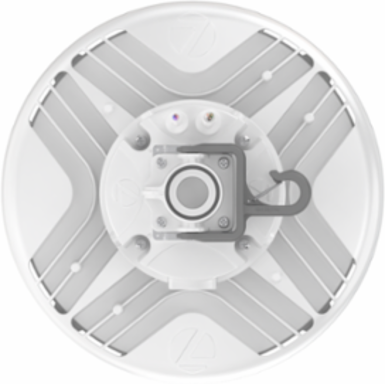

- INSTALLATION: Fixture includes patented flip hook with safety latch that can be flipped down and mounted with the ¾ inch threaded pendant mount; Optional cast loop or surface mount bracket available separately
- BATTERY: Field Installable 40 watt emergency battery pack
- WARRANTY: 5-year limited warranty
Specifications
Specifications
- Product Type
- High Bay
- Standard
- UL
- Lumens
- Switchable
- Lamp Type
- LED - Static
- Shape
- Round
- Environmental Conditions
- Indoor
- Wattage
- 120
- Color Rendering Index (CRI)
- 80
- Finish
- Gloss
- Maximum Operating Temperature
- 55
- Style
- Traditional
- Lens Color
- Clear
- Lens
- Yes
- Length
- 12.2 in
- Width
- 4.81 in

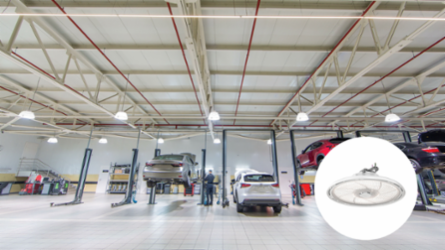

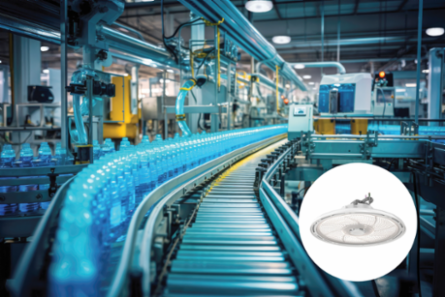

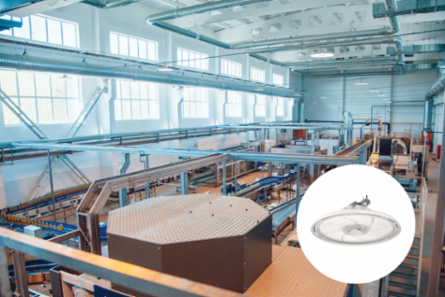

ApplicationManufacturing,Retail,Warehouses
Voltage Rating277-480
ColorWhite
Number of Lamps1
MountingPendant,Suspended
Color Temperature3500 K,4000 K,5000 K,Variable
MaterialAluminum
DimmableYes
Average Life38,000 hrs
Lamp IncludedYes
Lens MaterialPolycarbonate
Warranty5 Year Limited
Height12.2 in
Weight6.21 lbs
Country of OriginVietnam
